THE MECHANISMS OF ELECTRON ACCELERATION DURING MULTIPLE X LINE MAGNETIC RECONNECTION WITH A GUIDE FIELD

Magnetic reconnection is a fundamental physical process in plasma that is closely related to rapid energy conversion. In magnetic reconnection, free magnetic energy stored in a current sheet is suddenly released, and the plasma is then accelerated and heated (Vasyliunas 1975; Biskamp 2000; Priest & Forbes 2000; Birn et al. 2001; Daughton et al. 2006; Lu et al. 2013). Accelerated electrons during magnetic reconnection are thought to provide the non-thermal part of the electron spectra observed in many explosive phenomena, such as solar flares (Lin & Hudson 1976; Lin et al. 2003; Miller et al. 1997), substorms in the Earth's magnetosphere (Øieroset et al. 2002; Imada et al. 2007; Wang et al. 2010), and disruption in laboratory fusion experiments (Wesson 1997; Savrukhin 2001). For example, X-rays observed in solar flares are thought to be generated by the energetic electrons accelerated during magnetic reconnection (Yokoyama & Shibata 1995; Manoharan et al. 1996; Longcope et al. 2001). However, how energetic electrons are produced during magnetic reconnection is a long-standing problem that has been getting more and more attention recently. Many theoretical efforts have been devoted to revealing the mechanisms of electron acceleration during magnetic reconnection (Hoshino et al. 2001; Drake et al. 2006; Fu et al. 2006; Huang et al. 2010, 2015; Guo et al. 2014; Li et al. 2015).

Electron acceleration by the reconnection electric field in the vicinity of the X line was previously thought of as the primary mechanism during magnetic reconnection. In anti-parallel magnetic reconnection, electrons meander through the vicinity of the X line and are accelerated by the reconnection electric field (Vasyliunas 1975; Litvinenko 1996; Hoshino et al. 2001; Fu et al. 2006; Huang et al. 2010). In guide field reconnection, electrons may be pre-accelerated by the parallel electric field in the separatrix region before they enter the vicinity of the X line (Drake et al. 2005; Pritchett 2006; Egedal et al. 2013; Wang et al. 2014), where these electrons remain for a longer time due to the gyration in the guide field (Fu et al. 2006; Huang et al. 2010). In this way, the efficiency of electron acceleration in the vicinity of the X line may be enhanced in guide field reconnection. Hoshino et al. (2001) demonstrated that electrons can be further accelerated stochastically by the reconnection electric field after they enter the pileup region. The jet front, driven by an ion outflow, is another site that accelerates the electrons. There, the electrons are highly energized in the perpendicular direction due to the betatron acceleration (Fu et al. 2011; Huang et al. 2012; Birn et al. 2013; Wu et al. 2013). The parallel electric field is considered to play an important role in trapping these energetic electrons in the jet front region before the electrons are energized due to the betatron acceleration (Huang et al. 2015). Additionally, magnetic islands also play a critical role in electron acceleration during magnetic reconnection (Drake et al. 2006; Fu et al. 2006; Chen et al. 2008; Pritchett 2008; Oka et al. 2010; Guo et al. 2014). Fu et al. (2006) and Drake et al. (2006) proposed that electrons can gain energy when they are reflected from the two ends of a contracting magnetic island. This phenomenon has also been verified by in situ observations (Chen et al. 2008). For in situ observations in the Earth's magnetotail, Wu et al. (2015) demonstrated that a multistage process is necessary to accelerate electrons to a high energy in magnetic reconnection.

With a guiding-center theory, Dahlin et al. (2014) explored the importance of different acceleration mechanisms in guide field reconnection. Under the guiding-center approximation, the evolution of the energy of a single electron can be given as (Northrop 1963; Dahlin et al. 2014)

$$\begin{eqnarray}&&\displaystyle \frac{d\varepsilon }{{dt}}=(\mu /\gamma ){\partial }_{t}B-e({v}_{\parallel }{\boldsymbol{b}}+{{\boldsymbol{v}}}_{c}+{{\boldsymbol{v}}}_{g})\cdot {\boldsymbol{E}},\end{eqnarray} \tag{ 1 }$$

where ${\boldsymbol{b}}={\boldsymbol{B}}/| B| ,\mu ={m}_{e}{\gamma }^{2}{v}_{\perp }^{2}/2B$ is the magnetic moment, γ is the Lorentz factor, and ${v}_{\parallel }={\boldsymbol{v}}\cdot {\boldsymbol{b}}$. ${{\boldsymbol{v}}}_{c}=({v}_{\parallel }^{2}{\boldsymbol{b}}/{{\boldsymbol{\Omega }}}_{{ce}})\times {\boldsymbol{\kappa }}$ and ${{\boldsymbol{v}}}_{g}=({v}_{\perp }^{2}{\boldsymbol{b}}/(2{{\rm{\Omega }}}_{{ce}}))\times ({\rm{\nabla }}B/B)$ are the curvature and gradient B drifts, respectively. ${{\boldsymbol{\Omega }}}_{{ce}}={eB}/\gamma {m}_{e}c$ is the electron cyclotron frequency, and ${\boldsymbol{\kappa }}={\boldsymbol{b}}\cdot {\rm{\nabla }}{\boldsymbol{b}}$ is the curvature. Equation (1) can be described as follows after all particles in a local region are summed (Dahlin et al. 2014)

$$\begin{eqnarray}&&\displaystyle \frac{{dU}}{{dt}}={E}_{\parallel }{J}_{\parallel }+\displaystyle \frac{{p}_{\perp }}{B}\left(\displaystyle \frac{\partial B}{\partial t}+{{\boldsymbol{u}}}_{E}\cdot {\rm{\nabla }}B\right)+({p}_{\parallel }+{m}_{e}{{nu}}_{\parallel }^{2}){u}_{E}\cdot \kappa ,\end{eqnarray} \tag{ 2 }$$

where U is the total kinetic energy, u_E is the "E × B" drift velocity, u_∥ is the bulk velocity parallel to the magnetic field, n is the electron density, and p_⊥ and p_∥ are the perpendicular and parallel pressures, respectively. The first term in Equation (2) is the acceleration by the parallel electric field, and the second term is the betatron mechanism corresponding to perpendicular heating or cooling due to the conservation of the magnetic moment μ. The last term drives parallel acceleration, which arises from the first-order Fermi mechanism (Northrop 1961; Drake et al. 2006). Dahlin et al. (2014) found that in magnetic reconnection with a small guide field, the Fermi acceleration is the dominant source for electron energization. Additionally, with the increase of the guide field, electron acceleration by the parallel electric field becomes comparable to that of the Fermi acceleration. Recently, the interactions between magnetic islands (such as the merging of islands) have been found to lead to a great enhancement of energetic electrons (Pritchett 2008; Oka et al. 2010; Tanaka et al. 2010; Hoshino 2012; Zank et al. 2014). The electrons are found to be highly accelerated around the merging point of the secondary reconnection during the coalescence of magnetic islands, which is driven by the converging outflows from the initial magnetic reconnection regions (Oka et al. 2010). The current sheets in the solar atmosphere (Sui & Holman 2003; Liu et al. 2010) and the Earth's magnetosphere (Deng et al. 2004; Eastwood et al. 2005; Wang et al. 2014) usually have a sufficient length, where magnetic reconnection, in general, has multiple X lines, and many islands are generated and then interact with each other (Nakamura et al. 2010; Huang et al. 2012; Eriksson et al. 2014). In this paper, with two-dimensional (2D) particle-in-cell (PIC) simulations, electron acceleration during multiple X line reconnection with a guide field is investigated through the use of a guiding-center theory. We follow the time evolution of electron energy and their sources in specific flux tubes and over the spatial domain during island generation, during island merging, and after coalescence has completed. The contributions of the parallel electric field, Fermi, and betatron mechanisms to electron acceleration at different stages are analyzed in detail, and the effects of the guide field are also studied.

The paper is organized as follows. In Section 2, we delineate our simulation model. The simulation results are presented in Section 3. We summarize our results and discuss their significance in Section 4.

A 2D PIC simulation model is used in this paper to investigate the mechanisms of electron acceleration during the interactions between magnetic islands formed in multiple X line reconnection with a guide field. In our PIC simulations, the electromagnetic fields are defined on the grids and updated by solving the Maxwell equation with a full explicit algorithm, and ions and electrons are advanced in these electromagnetic fields. The initial configuration of the magnetic field consists of a uniform guide field superimposed by a Harris equilibrium. The magnetic field and the corresponding number density are given by

$$\begin{eqnarray}&&{{\boldsymbol{B}}}_{0}(z)={B}_{0}\mathrm{tanh}(z/\delta ){{\boldsymbol{e}}}_{x}+{B}_{y0}{{\boldsymbol{e}}}_{y},\end{eqnarray} \tag{ 3 }$$

$$\begin{eqnarray}&&n(z)={n}_{b}+{n}_{0}{{\rm{sech}}}^{2}(z/\delta ),\end{eqnarray} \tag{ 4 }$$

where B₀ is the asymptotic magnetic field, δ is the half-width of the current sheet, B_y0 is the initial guide field perpendicular to the reconnection plane, n_b is the number density of the background plasma, and n₀ is the peak Harris number density. The initial distribution functions for ions and electrons are Maxwellian with a drift speed in the y direction. The drift speeds satisfy the following equation: V_i0/V_e0 = −T_i0/T_e0, where V_e0 (V_i0) and T_e0 (T_i0) are the initial drift speed and the temperature of electrons (ions), respectively. We set T_i0/T_e0 = 4 and n_b = 0.2n₀ in our simulations. The initial half-width of the current sheet is set to be δ = 0.5d_i (where d_i = c/ω_pi is the ion inertial length defined on n₀) and the mass ratio m_i/m_e = 100. The light speed c = 15v_A, where v_A is the Alfvén speed based on B₀ and n₀.

The computations are carried out in a rectangular domain in the (x, z) plane with the dimension L_x × L_z = (51.2d_i) × (12.8d_i). The grid number is N_x × N_z = 1024 × 256. Therefore, the spatial resolution is Δx = Δz = 0.05d_i. The time step is Ω_it = 0.001, where Ω_i = eB₀/m_i is the ion gyro-frequency. We employ more than 10⁷ particles per species to simulate the plasma. The periodic boundary condition for the electromagnetic field and particles along the x axis and the ideal conducting boundary condition for the electromagnetic field and reflected boundary condition for particles in the z direction are used. The reconnection is initiated by a small flux perturbation, the same as was done in the GEM challenge (Birn et al. 2001) simulations because of the limited computing power. So the reconnection initiates with states similar to that of a spontaneous reconnection except that it bypasses the linear growth rate of the tearing mode.

In order to investigate the mechanisms that produce the non-thermal electrons during the evolution of multiple X line reconnection with a guiding-center theory, we limit our simulations to guide field reconnection. In this paper, we run three cases with the initial guide field: B_y0 = 0.5B₀, 1.0B₀, and 2.0B₀.

In order to analyze the mechanisms of electron acceleration, we trace the distributions of electron energy in a defined flux tube during the evolution of multiple X line reconnection and then calculate the contributions of the parallel electric field, Fermi, and betatron mechanisms to electron acceleration, which are based on Equation (2). Figure 1(a) shows the magnetic field lines and the distributions of electron energy in the defined flux tube at Ω_it = 20, 25, 30, 35, 40, and 45. Figure 1(b) exhibits the evolution of the contributions of the parallel electric field, Fermi, and betatron mechanisms to the enhancement of electron energy in the flux tube. Here the initial guide field is B_y0 = 0.5B₀. The reconnection of the magnetic field lines begins at about Ω_it = 15, and the X line appears around the boundary of the simulation domain. At this time, there is one magnetic island in the simulation domain, and the energy of the electrons in the flux tube is enhanced. These electrons are accelerated by the parallel electric field in the vicinity of the X line around the boundary. Simultaneously, each of the flux tubes is contracted due to compression by the high-speed outflow from the X line, and the electrons are also accelerated by the Fermi mechanism. At about Ω_it = 23, another X line is formed around the center of the simulation domain, and two magnetic islands are formed. The flux tube is separated into two detached tubes, which are contracted due to the compression of the high-speed outflow from the two X lines. The electron energy is further enhanced due to acceleration by both the Fermi mechanism and the parallel electric field mechanism in the vicinity of the X line around the center of the simulation domain. Simultaneously, the electrons suffer from betatron cooling because of the magnetic field annihilation during magnetic reconnection. Then the electrons are accelerated due to the betatron mechanism, when the magnetic field begins to be piled up at the ends of the magnetic islands by the high-speed flow from the X lines. From about Ω_it = 33, the two islands in the simulation domain begin to merge into one big island, and the electrons in the flux tube are accelerated by the parallel electric field around the merging point. After the coalescence is finished, a big island is formed and the flux tubes are merged into one large tube. The electrons can also be accelerated by the Fermi mechanism due to the contraction of the flux tube. Note that the betatron acceleration or cooling is a local process which can only affect the electrons in a region where the magnetic field is piled up or annihilated. Their contributions to the energetic electrons in the whole flux tube is smaller than that of the parallel electric field and Fermi mechanisms.

Zoom In Zoom Out Reset image size

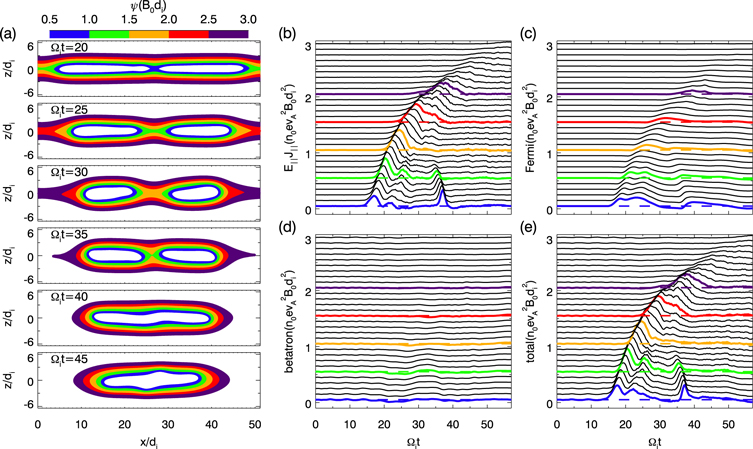

Figure 2(a) plots the configuration of five different flux tubes with magnetic flux: $\psi \in [{\rm{0.5}}{B}_{0}{d}_{i},{\rm{1.0}}{B}_{0}{d}_{i}]$, $[{\rm{1.0}}{B}_{0}{d}_{i},{\rm{1.5}}{B}_{0}{d}_{i}]$, $[{\rm{1.5}}{B}_{0}{d}_{i},{\rm{2.0}}{B}_{0}{d}_{i}]$, $[{\rm{2.0}}{B}_{0}{d}_{i},{\rm{2.5}}{B}_{0}{d}_{i}]$, and $[{\rm{2.5}}{B}_{0}{d}_{i},{\rm{3.0}}{B}_{0}{d}_{i}]$, marked with different colors: blue, green, yellow, red, and purple at Ω_it = 20, 25, 30, 35, 40, and 45. Figure 2(b)–(d) exhibits the evolution of the contributions of the parallel electric field, Fermi, and betatron mechanisms to the enhancement of electron energy in different flux tubes. The sum of these contributions is shown in Figure 2(e). The different colored lines correspond to different flux tubes in Figure 2(a). Similarly to those in Figure 1, the contributions of the betatron acceleration in a whole flux tube are smaller than those of the parallel electric field and Fermi mechanisms due to its local effects. Both the parallel electric field and Fermi mechanisms are important to each flux tube. Acceleration efficiency by both the parallel electric field and Fermi mechanisms becomes lower when the flux tubes are located far enough away from the center of the current sheet.

Zoom In Zoom Out Reset image size

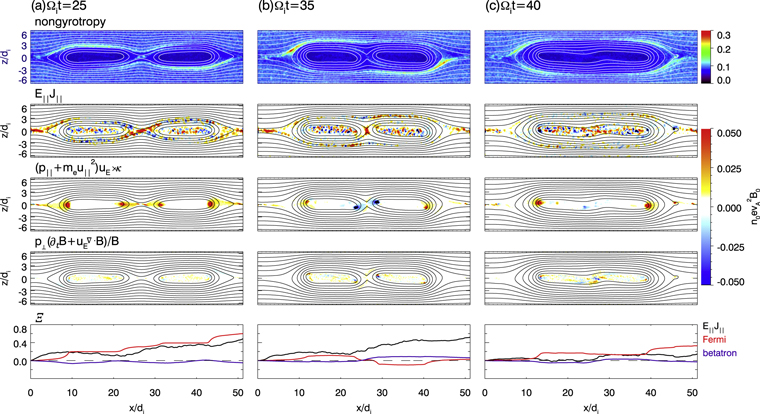

In Figure 3, with the same method as in Dahlin et al. (2014), from the top to the bottom panel, we plot the spatial distributions of the electron nongyrotropy, the contributions of the parallel electric field, Fermi, and betatron mechanisms to the electron acceleration, and the spatially integrated contribution ${\rm{\Xi }}(x)={\int }_{0}^{x}{{dx}}^{\prime }\int U({x}^{\prime },z){dz}$ at Ω_it = (a) 25, (b) 35, and (c) 45, respectively. Here the initial guide field is B_y0 = 0.5B₀. The electron nongyrotropy is calculated by ${D}_{{ng}}=\tfrac{2\sqrt{{\sum }_{i,j}{N}_{{ij}}^{2}}}{{Tr}({{\bf{P}}}_{e})}$, where ${{\boldsymbol{P}}}_{e}$ is the electron full pressure tensor and N_ij represents the matrix elements of ${\boldsymbol{N}}$, defined as the nongyrotropic part of the electron full pressure tensor (Aunai et al. 2013). In the expression of Ξ, U is the term contributed by either the parallel electric field, Fermi, or betatron mechanisms, based on Equation (2). Therefore, the slope of Ξ yields the contribution from the corresponding term at a given x. The electron nongyrotropy is almost zero in the whole simulation domain except at a small region along the separatrices, which means that the guide-center theory can be used to analyze the electron acceleration. The time at Ω_it = 25 represents the stage where the two magnetic islands are formed and then contracted by the high-speed flow from the X line. During this stage, the electrons are mainly accelerated by the parallel electric field and Fermi mechanisms. Although the contributions of the betatron mechanism to electron acceleration cannot be negligible, the betatron acceleration is in general accompanied by betatron cooling. This is because the pileup and annihilation of the magnetic field usually occurs simultaneously during the interactions of magnetic islands, and their net effects to electron acceleration may be smaller than that from the parallel electric field or Fermi mechanisms. The time at Ω_it = 35 is the stage where the two islands are merging, when electrons are accelerated mainly by the parallel electric field. At Ω_it = 45, a big magnetic island is formed and then contracts after the coalescence of the two islands is finished, and the electrons are mainly accelerated by the Fermi mechanism. These results are consistent with the conclusions obtained from Figure 1.

Zoom In Zoom Out Reset image size

From Figure 3, we further show that when the two magnetic islands are being contracted (at Ω_it = 25), the electron acceleration by the parallel electric field occurs mainly in the vicinity of the X line, while the electrons at the two ends of a magnetic island are accelerated due to the Fermi or betatron mechanisms. At Ω_it = 35, when the islands are merging, electrons are mainly accelerated around the merging point by the parallel electric field. At Ω_it = 45, when the coalescence of the two islands is finished and a big island is formed, electrons are mainly accelerated at the two ends of the big island due to the Fermi mechanism.

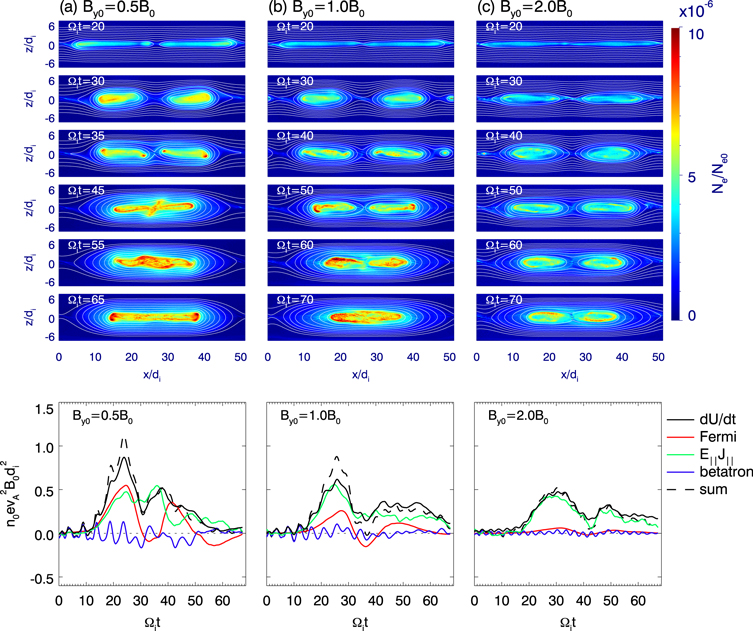

Figure 4 plots the evolution of the spatial distribution of electrons with energy larger than 0.1m_ec² and the contributions of the parallel electric field, Fermi, and betatron mechanisms to the enhancement of electron energy in the whole simulation domain with different initial guide fields (a) B_y0 = 0.5B₀, (b) B_y0 = 1.0B₀, and (c) B_y0 = 2.0B₀, respectively. The process of electron acceleration can be separated into two stages. In the case with B_y0 = 0.5B₀, in the first stage (from about Ω_it = 15 to 30), electrons are accelerated mainly by both the parallel electric field and Fermi mechanisms when the two magnetic islands are formed and being contracted. In the second stage (from about Ω_it = 30 to 40), electrons are first accelerated by the parallel electric field induced during the coalescence of the two magnetic islands, and then the Fermi mechanism begins to work when the newly formed big island starts contracting. In both stages, the electron acceleration by the two mechanisms is comparable, and the net effect of the betatron acceleration is smaller.

Zoom In Zoom Out Reset image size

For the case with the guide field B_y0 = 1.0B₀, in the first stage (from about Ω_it = 15 to 40), two magnetic islands are formed and then contracted, and in the second stage (from about Ω_it = 40 to 60), the two magnetic islands are merged into one big island. The process of electron acceleration is similar to that with the guide field B_y0 = 0.5B₀; however, now the acceleration by the parallel electric field is more important than that by the Fermi acceleration. In the case with the guide field B_y0 = 2.0B₀, the contribution of the Fermi mechanism can be neglected, although the evolution of the magnetic field lines and electron acceleration also has two stages that are similar to the results with a small guide field. When we increase the guide field, the energetic electrons tend to gather at the edge of the magnetic island, because the Fermi acceleration becomes less and less important, and the parallel electric field can only accelerate the electrons at the edge of the magnetic island. Also in these two cases, the net effect of the betatron acceleration is smaller than that of the parallel electric field or Fermi mechanisms. In Figure 4, the difference between dU/dt and the "sum" comes from the non-adiabatic motion of some electrons, which cannot be described by a guiding-center theory. The difference becomes smaller with the increase of the guide field, because with the increase of the guide field the electron motions can be described more precisely with the guiding-center theory.

Figure 5 shows the electron momentum spectra in the directions parallel and perpendicular to the magnetic field during magnetic reconnection with a guide field (a) B_y0 = 0.5B₀, (b) B_y0 = 1.0B₀, (c) B_y0 = 2.0B₀, and the spectra are obtained by integrating all of the electrons in the simulation domain. Initially, the distribution of these electrons satisfies a Maxwellian function in both the parallel and perpendicular directions. A non-thermal tail of both parallel and perpendicular energy is formed during magnetic reconnection with the parallel momentum that is larger than the perpendicular momentum, which is similar to the results in Dahlin et al. (2014). As the parallel electric field and Fermi mechanisms are the main contributors to electron acceleration during the interaction of magnetic islands, they tend to accelerate electrons in the parallel direction. The electron acceleration in the perpendicular direction may come from the betatron acceleration or from the non-adiabatic motions of the high energy electrons or the electrons traveling through the separatrices.

Zoom In Zoom Out Reset image size

In this paper, using a 2D PIC simulation model, we studied electron acceleration during multiple X line reconnection with a guide field by following the time evolution of electron energy and their sources in specific flux tubes and over the spatial domain. The evolution of the magnetic reconnection and the associated electron acceleration has two distinct stages. In the first stage, two magnetic islands are formed in the simulation domain, and they are contracted by the high-speed flow produced from the X lines. Electrons can be accelerated in the vicinity of the X line by the parallel electric field, as well as at the two ends of each magnetic island by the Fermi mechanism. During this stage, the contributions of the betatron mechanism to the electron acceleration may be also important. However, the betatron mechanism is a local process and only affects the electrons in a region where the magnetic field is piled up. At the same time, the pileup and annihilation of the magnetic field usually occurs simultaneously during the interactions of the magnetic island, and the betatron acceleration is in general accompanied by the betatron cooling. Their net effects to electron acceleration may be smaller than that of the parallel electric field or Fermi mechanisms. In the second stage, the two magnetic islands are merged into one big island. Electrons are first accelerated around the merging point by the parallel electric field and then are accelerated due to the Fermi mechanism, because the big island begins to be contracted after the coalescence is finished. We also changed the size of simulation domain, and found that it does not change the relative importance of different acceleration mechanisms after doubling the system size along the x axis. When the guide field is small, the contribution of the Fermi mechanism to the electron acceleration is comparable to that of the parallel electric field. However, with the increase of the guide field, the formed magnetic islands become more and more difficult to compress, and then the contribution of the Fermi mechanism becomes less and less important. When the guide field is sufficiently large (B_y0 ≥ 0.2B₀), the contributions of the Fermi mechanism to electron acceleration is negligible. When the guide field is sufficiently small (B_y0 ≤ 0.2B₀), the Fermi acceleration will become more important than that of the parallel electric field, as described in Dahlin et al. (2014). However, in anti-parallel magnetic reconnection, the motions of most electrons will become non-adiabatic, and the guiding-center theory cannot be used. How to analyze the mechanisms of electron acceleration in such a situation is beyond the scope of this paper.

Energetic electrons are one of the most important signatures in magnetic reconnection. In space plasma, such as in the solar atmosphere, a current sheet, where magnetic reconnection occurs, usually has a large aspect ratio of the length to the width and a finite guide field (Sui & Holman 2003; Liu et al. 2010). Therefore, magnetic reconnection in such a current sheet usually has multiple X lines, and the interactions between magnetic islands are prevalent (Nakamura et al. 2010; Huang et al. 2012; Eriksson et al. 2014). Our simulations have shown that the parallel electric field and Fermi mechanisms provide two important ways to produce these energetic electrons during magnetic reconnection. When the guide field is sufficiently strong, the contribution of the Fermi mechanism to electron acceleration is negligible during the contraction of the magnetic island.

This research was supported by 973 Program (2013CBA01503, 2012CB825602), the National Science Foundation of China, Grant Nos. 41474125, 41331067, 41174124, 41121003, 41404129, and CAS Key Research Program KZZD-EW-01-4.
