A Spectroscopic Survey of the Fields of 28 Strong Gravitational Lenses: Implications for H₀

Strong gravitational lensing has long been used to measure cosmological parameters, such as the Hubble constant, through measuring time delays for systems with quasar sources (Refsdal 1964; Schechter et al. 1997; Keeton & Kochanek 1997; Koopmans et al. 2003; Saha et al. 2006; Oguri 2007; Suyu et al. 2010, 2013; Rathna Kumar et al. 2015; Birrer et al. 2016; Chen et al. 2016; Bonvin et al. 2017; Wong et al. 2017) and the dark energy density through determining statistical properties of strong lensing systems (Turner 1990; Chae 2003; Mitchell et al. 2005; Oguri et al. 2008). Lensed type Ia supernovae likewise can be used to measure H₀ (Refsdal 1964; Goldstein & Nugent 2017), although few have yet been found (Kelly et al. 2015; Goobar et al. 2017). Future large surveys, such as those using the Large Synoptic Survey Telescope (LSST) and Euclid, will discover a large sample (i.e., a few thousand) of lensed quasars that could then be used to statistically constrain these parameters to high precision (Oguri & Marshall 2010; Laureijs et al. 2011; Linder 2011; LSST Dark Energy Science Collaboration 2012).

Much of the work on galaxy-scale strong gravitational lenses has indicated that often the lens galaxy is not the only mass that significantly affects the lensing potential (e.g., Wallington et al. 1996; Keeton et al. 1997; Claeskens et al. 2006; Collett et al. 2013). Since any mass along the line-of-sight (hereafter LOS) between the observer and the source can contribute to the lensing, any structure in which the lens galaxy might reside, as well as any unrelated structure sufficiently massive and close either in redshift or projected on the sky, might be important. In addition, the lens environment might affect the lensed image morphology (i.e., how many images of the source are present; Keeton & Zabludoff 2004; Momcheva et al. 2006).

Previous work has indicated that many galaxy-scale lenses are located in groups or clusters and/or in fields with projected LOS structures (e.g., Kundic et al. 1997; Fassnacht & Lubin 2002; Momcheva et al. 2006; Auger et al. 2008; Sluse et al. 2017). However, only small footprints on the sky around a few galaxy-scale lens systems have been observed with deep follow-up spectroscopy. So, how common these structures are is not well constrained. If gravitational lensing is going to be one of the several methods used to determine H₀ to <1% accuracy, which is also needed for upcoming dark energy studies (e.g., Linder 2011), systematics such as those due to local environment and LOS mass must be quantified.

We use a spectroscopically-sampled subset of 26 of 28 galaxy-scale strong gravitational lenses (Momcheva et al. 2015; Wilson et al. 2016) to constrain the lens environments and LOS structures. We use the convergences and shears to assess the importance of groups. The uncertainty due to lens environment and LOS structures is a systematic, rather than statistical, uncertainty. Convergence, which affects the measurements of H₀, is not measured on the sky like shear, nor can it be inferred through models. So, it is important to constrain uncertainties due to groups specifically.

In our analyses, we consider convergences or shears of individual groups or total LOSs to be significant if they are ≥0.01. We adopt this threshold because a convergence of 0.01 will correspond to a 1% bias in H₀ (as $h\propto (1-\kappa )$; Keeton & Zabludoff 2004), the level of precision necessary for this method to independently constrain H₀ at the current leading levels of precision using other methods (see, e.g., Keeton & Zabludoff 2004). Shears of 0.01 lead to $\sim 3\sigma$ effects, because shear enters the lens equation as γ multiplied by the lensed image position, which usually has uncertainties $\sim 0\buildrel{\prime\prime}\over{.} 003$ (Courbin et al. 1997). The uncertainty due to time delay measurements (e.g., Suyu et al. 2013) and constraints on the external convergence derived statistically from galaxy counts and cosmological simulations (e.g., Rusu et al. 2017) have been at the ∼1%–2% level. In addition, we consider convergences and shears ≥0.05. The 5% level is about the level of discrepancy persisting between different methods of measuring H₀.

We describe the data in Section 2 and our lensing formalism in Section 3. We then discuss the importance of groups to lensing in the order in which complexity historically has been added to lensing models when considering convergence, which is not measured on the sky: we first examine the lens environment (Section 5) then LOS structures (Section 6). We structure our discussion of shear in the same way for clarity; however, we note that total shear is measured on the sky, and historically increasing complexity has involved dividing that shear into a larger number of possible contributors (i.e., lens environment and LOS groups) rather than adding extra terms. Additionally, we look for differences in environment and LOS structures for systems with quad and double image morphologies (Sections 5.3 and 6.3, respectively). We consider implications of the convergences due to groups for measuring H₀ in Section 7. Finally, in Section 8, we investigate the relationship between ${\gamma }_{\mathrm{tot}}$ and ${\kappa }_{\mathrm{tot}}$.

Throughout this paper, we adopt the values of H₀ = 71 km s⁻¹ Mpc⁻¹, ${{\rm{\Omega }}}_{m}=0.274$, and ${{\rm{\Omega }}}_{{\rm{\Lambda }}}=0.726$ (Hinshaw et al. 2009).

2.1. Sample Selection

The lens sample selection is described in Momcheva et al. (2015). It depended in part on the ancillary data available at the time of spectroscopic observations as well as the lens fields' accessibility from the telescope site. Some early preference was given to fields with known large shears, ill-fitting models, and/or poorly characterized lens environments.

Williams et al. (2006) detailed the collection and reduction of the photometry in the 28 lens fields. Galaxy redshifts were obtained by Momcheva et al. (2015) for a subset of the photometric objects in those fields; the spectroscopically well-sampled regions have radii ranging from $\sim 5^{\prime}$ to $\sim 20^{\prime}$ from the lens. These large sampled regions allow for the identification and accurate determination of group properties (i.e., group centroid and group velocity dispersion), which can significantly impact the lensing potential even when the group is projected a few arcminutes from the lens.

For 26 of the 28 fields with the most complete spectroscopic data, Wilson et al. (2016) created a group catalog including any groups projected along the sightline to the lens as well as groups in which the lens galaxy is itself a member. The properties of these 26 fields are listed in Table 1, and the lens system references are given in Appendix A. Here we use Wilson et al.'s group velocity dispersions, mean redshifts, and projected spatial centroids. We focus primarily on the subset of 21 fields with lenses with firm spectroscopic redshifts. We consider one additional lens field, b0712, which has both a group at the lens and a large foreground supergroup (Wilson et al. 2016), when analyzing lens environments (Sections 5 and 7; Figure 8), but exclude it elsewhere due to the uncertain mass of the supergroup (see Section 3).

Table 1.  Lens Systems

Field	${{\rm{RA}}}_{\mathrm{lens}}$	${{\rm{Dec}}}_{\mathrm{lens}}$	zL	zS	Imagesa	Sizeb	Size typec	${N}_{\mathrm{grp}}$ d	${z}_{\mathrm{grp}}$ d	Rd,e	${\sigma }_{\mathrm{grp}}$ d	${r}_{\mathrm{vir}}$ d
	[deg]	[deg]				['']				[']	[km s−1]	[Mpc]
b0712	109.0152	47.1474	0.4060	1.3390	4	1.46	2	13	0.4030	1.07	${800}_{-530}^{+140}$	1.59
b1152	178.8264	19.6617	0.4386	1.0173	2	1.59	3	⋯	⋯	⋯	⋯	⋯
b1422	216.1587	22.9335	0.3374	3.6318	4E	1.68	2	23	0.3385	1.34	${460}_{-50}^{+60}$	0.95
b1600	240.4188	43.2798	0.4140	1.5890	2	1.40	3	6	0.4146	0.29	${110}_{-20}^{+20}$	0.22
b2114	319.2116	2.4297	0.3150	0.5883	2+2	1.31	0	10	0.3143	0.45	${140}_{-30}^{+30}$	0.30
bri0952	148.7505	−1.5017	0.6320	4.4462	2	1.00	3	⋯	⋯	⋯	⋯	⋯
fbq0951	147.8441	26.5873	0.2600	1.2488	2	1.11	3	21	0.2643	5.81	${660}_{-130}^{+100}$	1.43
h1413	213.9427	11.4954	0.9f	2.4873	4	1.35	1	⋯	⋯	⋯	⋯	⋯
h12531	193.2779g	−29.2417g	0.69h	⋯	4	1.23	2	⋯	⋯	⋯	⋯	⋯
he0435	69.5620	−12.2874	0.4546	1.6961	4	2.42	2	12	0.4550	0.61	${520}_{-90}^{+80}$	1.01
he1104	166.6389	−18.3567	0.7280	2.3207	2	3.19	3	⋯	⋯	⋯	⋯	⋯
he2149	328.0312	−27.5303	0.4953	2.0330	2	1.70	3	⋯	⋯	⋯	⋯	⋯
hst14113	212.8320	52.1916	0.4644	2.8110	4	1.80	2	55	0.4603	3.42	${500}_{-40}^{+40}$	0.98
lbq1333	203.8950	1.3015	0.4400	1.5645	2	1.63	3	⋯	⋯	⋯	⋯	⋯
mg0751	117.9229	27.2755	0.3502	3.2000	R	0.70	0	26	0.3501	1.12	${400}_{-70}^{+60}$	0.82
mg1131	172.9853	4.9304	0.8440	2i	2R	2.10	0	⋯	⋯	⋯	⋯	⋯
mg1549	237.3014	30.7880	0.1117	1.1700	R	1.70	0	⋯	⋯	⋯	⋯	⋯
mg1654	253.6743	13.7727	0.2530	1.7400	R	2.10	0	8	0.2520	1.10	${160}_{-40}^{+40}$	0.36
pg1115	169.5706	7.7663	0.3098	1.7355	4	2.32	2	13	0.3097	0.17	${390}_{-60}^{+50}$	0.82
q0047	12.4245	−27.8738	0.4842	3.5950	4ER	2.70	0	20	0.4890	3.41	${630}_{-80}^{+70}$	1.21
q0158	29.6728	−43.4177	0.3170	1.2900	2	1.22	3	⋯	⋯	⋯	⋯	⋯
q1017	154.3497	−20.7829	0.78h	2.5450	2	0.85	3	⋯	⋯	⋯	⋯	⋯
q1355	208.9308	−22.9564	0.7020	1.37g	2	1.23	3	⋯	⋯	⋯	⋯	⋯
rxj1131	172.9646	−12.5329	0.2950	0.6580	4	3.80	2	38	0.2938	5.23	${550}_{-90}^{+70}$	1.18
sbs1520	230.4368	52.9135	0.72,j0.761k	1.86g	2	1.59	3	⋯	⋯	⋯	⋯	⋯
wfi2033	308.4247	−47.3952	0.6610	1.6604	4	2.33	2	14	0.6598	1.94	${460}_{-100}^{+60}$	0.80

Notes.

^aFrom CASTLES (https://www.cfa.harvard.edu/castles/): Number = Number of images, R = Einstein ring, and E = Extended. ^bEstimates of twice the average Einstein radius from CASTLES. ^cFrom CASTLES: 0 = Literature estimate, 1 = Maximum image pair separation, 2 = Twice average distance from lens center to images, 3 = Twice an SIS model's critical radius plus external shear. ^dLens group properties from Wilson et al. (2016). ^eProjected angular distance between the lens and the group centroid. ^fPhotometric redshift from Kneib et al. (1998). ^gFrom CASTLES. ^hPhotometric redshift from CASTLES. ⁱPhotometric redshift from Kochanek et al. (2000). ^jSpectroscopic redshift from Chavushyan et al. (1997). ^kSpectroscopic redshift from Auger et al. (2008).

Download table as:  ASCIITypeset image

2.2. Photometry

2.3. Spectroscopy

2.4. Group Catalog

2.4.1. Group Finding Algorithm

We use all groups in Tables 1, 2, and 4 of Wilson et al. (2016) in the lens beams to include all the observed mass. This sample thus includes groups with as few as three member galaxies, for which group properties are difficult to accurately determine, and groups that our algorithm did not find that we added in manually with differently determined group properties. So, the formal uncertainties on the convergence and shear (see Section 3) consequently are large.

Table 2.  Summary of Lensing Parameters for Each Field

Field	${N}_{\mathrm{LOS}\mathrm{grps}}$	${\kappa }_{\mathrm{lens}}$	${\gamma }_{\mathrm{lens}}$	${\kappa }_{\mathrm{los}}$	${\gamma }_{\mathrm{los}}$	${\kappa }_{\mathrm{tot}}$	${\gamma }_{\mathrm{tot}}$
b0712a	11	${0.118}_{-0.014}^{+0.050}$	${0.115}_{-0.038}^{+0.047}$	${0.311}_{-0.116}^{+0.229}$	${0.173}_{-0.048}^{+0.076}$	${0.429}_{-0.126}^{+0.225}$	${0.284}_{-0.058}^{+0.087}$
b1152	15	⋯	⋯	${0.021}_{-0.006}^{+0.010}$	${0.027}_{-0.007}^{+0.010}$	${0.021}_{-0.006}^{+0.010}$	${0.027}_{-0.007}^{+0.010}$
b1422	8	${0.029}_{-0.012}^{+0.022}$	${0.050}_{-0.014}^{+0.019}$	${0.102}_{-0.037}^{+0.088}$	${0.065}_{-0.034}^{+0.051}$	${0.130}_{-0.044}^{+0.084}$	${0.078}_{-0.043}^{+0.050}$
b1600	9	${0.005}_{-0.003}^{+0.015}$	${0.012}_{-0.006}^{+0.014}$	${0.041}_{-0.012}^{+0.025}$	${0.041}_{-0.014}^{+0.017}$	${0.046}_{-0.016}^{+0.042}$	${0.033}_{-0.015}^{+0.022}$
b2114	12	${0.004}_{-0.001}^{+0.005}$	${0.009}_{-0.003}^{+0.006}$	${0.038}_{-0.011}^{+0.025}$	${0.037}_{-0.012}^{+0.016}$	${0.042}_{-0.012}^{+0.027}$	${0.028}_{-0.014}^{+0.016}$
bri0952	8	⋯	⋯	${0.039}_{-0.018}^{+0.044}$	${0.023}_{-0.023}^{+0.035}$	${0.039}_{-0.018}^{+0.044}$	${0.023}_{-0.023}^{+0.035}$
fbq0951	32	${0.004}_{-0.002}^{+0.003}$	${0.018}_{-0.007}^{+0.007}$	${0.226}_{-0.060}^{+0.103}$	${0.057}_{-0.028}^{+0.042}$	${0.230}_{-0.060}^{+0.106}$	${0.039}_{-0.028}^{+0.045}$
h1413	5	⋯	⋯	⋯	${0.001}_{-0.0004}^{+0.001}$	⋯	${0.001}_{-0.0004}^{+0.001}$
he0435	11	${0.091}_{-0.031}^{+0.110}$	${0.090}_{-0.030}^{+0.049}$	${0.128}_{-0.029}^{+0.063}$	${0.041}_{-0.020}^{+0.031}$	${0.219}_{-0.062}^{+0.138}$	${0.089}_{-0.040}^{+0.052}$
he1104	14	⋯	⋯	${0.027}_{-0.010}^{+0.029}$	${0.026}_{-0.009}^{+0.015}$	${0.027}_{-0.010}^{+0.029}$	${0.026}_{-0.009}^{+0.015}$
he2149	5	⋯	⋯	${0.010}_{-0.006}^{+0.015}$	${0.028}_{-0.008}^{+0.013}$	${0.010}_{-0.006}^{+0.015}$	${0.028}_{-0.008}^{+0.013}$
hst14113	20	${0.002}_{-0.001}^{+0.002}$	${0.016}_{-0.005}^{+0.007}$	${0.052}_{-0.020}^{+0.030}$	${0.070}_{-0.030}^{+0.032}$	${0.054}_{-0.019}^{+0.030}$	${0.085}_{-0.030}^{+0.035}$
lbq1333	10	⋯	⋯	${0.003}_{-0.001}^{+0.002}$	${0.014}_{-0.004}^{+0.004}$	${0.003}_{-0.001}^{+0.002}$	${0.014}_{-0.004}^{+0.004}$
mg0751	5	${0.025}_{-0.011}^{+0.022}$	${0.044}_{-0.015}^{+0.019}$	${0.005}_{-0.002}^{+0.010}$	${0.015}_{-0.007}^{+0.013}$	${0.030}_{-0.014}^{+0.027}$	${0.046}_{-0.018}^{+0.022}$
mg1131	10	⋯	⋯	${0.014}_{-0.005}^{+0.008}$	${0.017}_{-0.005}^{+0.005}$	${0.014}_{-0.005}^{+0.008}$	${0.017}_{-0.005}^{+0.005}$
mg1549	10	⋯	⋯	${0.009}_{-0.004}^{+0.016}$	${0.017}_{-0.008}^{+0.014}$	${0.009}_{-0.004}^{+0.016}$	${0.017}_{-0.008}^{+0.014}$
mg1654	11	${0.002}_{-0.001}^{+0.005}$	${0.008}_{-0.004}^{+0.009}$	${0.058}_{-0.029}^{+0.065}$	${0.065}_{-0.030}^{+0.044}$	${0.060}_{-0.030}^{+0.065}$	${0.058}_{-0.029}^{+0.046}$
pg1115	12	${0.234}_{-0.059}^{+0.102}$	${0.099}_{-0.025}^{+0.021}$	${0.007}_{-0.003}^{+0.005}$	${0.009}_{-0.006}^{+0.007}$	${0.241}_{-0.059}^{+0.101}$	${0.108}_{-0.027}^{+0.022}$
q0047	11	${0.005}_{-0.003}^{+0.007}$	${0.027}_{-0.011}^{+0.017}$	${0.033}_{-0.011}^{+0.028}$	${0.046}_{-0.010}^{+0.015}$	${0.039}_{-0.014}^{+0.031}$	${0.052}_{-0.016}^{+0.020}$
q0158	5	⋯	⋯	${0.018}_{-0.010}^{+0.026}$	${0.035}_{-0.017}^{+0.028}$	${0.018}_{-0.010}^{+0.026}$	${0.035}_{-0.017}^{+0.028}$
q1017	15	⋯	⋯	${0.003}_{-0.001}^{+0.003}$	${0.002}_{-0.002}^{+0.003}$	${0.003}_{-0.001}^{+0.003}$	${0.002}_{-0.002}^{+0.003}$
q1355	11	⋯	⋯	${0.011}_{-0.004}^{+0.011}$	${0.016}_{-0.006}^{+0.010}$	${0.011}_{-0.004}^{+0.011}$	${0.016}_{-0.006}^{+0.010}$
rxj1131	14	${0.002}_{-0.001}^{+0.002}$	${0.009}_{-0.004}^{+0.005}$	${0.061}_{-0.016}^{+0.024}$	${0.017}_{-0.008}^{+0.009}$	${0.063}_{-0.015}^{+0.024}$	${0.019}_{-0.010}^{+0.012}$
sbs1520	9	⋯	⋯	${0.012}_{-0.004}^{+0.006}$	${0.008}_{-0.004}^{+0.006}$	${0.012}_{-0.004}^{+0.006}$	${0.008}_{-0.004}^{+0.006}$
wfi2033	10	${0.003}_{-0.002}^{+0.002}$	${0.017}_{-0.008}^{+0.007}$	${0.065}_{-0.021}^{+0.053}$	${0.033}_{-0.022}^{+0.034}$	${0.068}_{-0.022}^{+0.053}$	${0.049}_{-0.024}^{+0.030}$

Note.

^aValues presented here include the supergroup. See Section 3 and Table 3 for details.

Download table as:  ASCIITypeset image

To check whether this inclusiveness is biasing our results, we repeat our analysis discarding manually-added groups and others with ${N}_{m}\lt 5$ (as groups with fewer members are more likely to be spurious), ${\sigma }_{\mathrm{grp}}\leqslant 200$ km s⁻¹ (such structures might be cuts through galaxy filaments or sheets misidentified as bound groups), ${z}_{\mathrm{grp}}\lt 0.1$ (where only our smallest groups are sampled out to at least $1{r}_{\mathrm{vir}}$ given our typical field sizes, resulting in possibly ill-determined group properties), or are near the field edge (as the group centroid could be biased). With this clean sample, we get qualitatively similar results.

All of our groups are at ${z}_{\mathrm{grp}}\lt {z}_{{\rm{S}}}$, where z_S is the redshift of the source, so any might contribute to the lensing of the source. In most fields, our group catalog is more sensitive at redshifts below the lens redshift (z_L) than between z_L and z_S. McCully et al. (2017) find that structures in front of the lens are more likely to significantly affect the lensing potential than those between the lens and the source. Thus, any groups we miss at the redshifts above that of the lenses are less likely to be significant.

2.4.2. Lens Groups

Having characterized the groups in these 26 fields, we now see whether any of the lens galaxies are also group members, since mass at the redshift of the lens can significantly affect the lensing potential. Our group finder does not treat lens galaxies differently, so nothing about the algorithm should be preferentially selecting structures at the lens' redshifts. However, the fields, and thus our spectroscopic coverage, were centered on the lenses, so if there are structures they are more likely to be found than if they were at the same redshifts elsewhere in the fields. Table 1 lists the lens and lens group properties, where present, for the 26 lenses in the 26 fields in our group catalog. As stated in Wilson et al. (2016), 13 of our lenses are assigned to groups.

The distributions of lens group velocity dispersions and redshifts are given in Figure 1. The velocity dispersions range from ∼100–800 km s⁻¹ (although some have large uncertainties). Most lens groups have slightly higher velocity dispersions than the average for our overall group sample. The effect may arise from the lower spectroscopic completeness away from the lens (Momcheva et al. 2015), as group velocity dispersion tends to be underestimated when its members' redshift distribution is undersampled (Zabludoff & Mulchaey 1998).

Zoom In Zoom Out Reset image size

To ascertain whether the velocity dispersions of lens groups are in fact different, we compare our lens groups only to LOS groups with projected spatial centroids within ${5}^{{\prime} }$ of the lenses (typically the best sampled region in all our fields). A Mann–Whitney–Wilcoxon (MWW) test (Wilcoxon 1945; Mann & Whitney 1947) distinguishes between the two distributions at >95% confidence, a result likely to be dominated by the distributions' different variances. To check for differences between the means of the two velocity dispersion distributions, we perform a "bootstrap means comparison" (see Appendix B), drawing from the 13 best-sampled non-lens groups and finding that their mean velocity dispersion is at least as large as that of the lens groups in 6.9% of 1000 trials.

The falling sensitivity of our redshift catalog (Momcheva et al. 2015) results in few groups above z ≳ 0.6. Four of nine of the lenses with z > 0.6 either have only a photometric redshift or an uncertain spectroscopic redshift, so we do not assign them group membership. For example, Auger et al. (2008) identify sbs1520 as lying in a group, but we do not do so here because there are several different lens redshift estimates in the literature.

Of the other five lenses that have good spectroscopic lens redshifts, only one is classified here as a group member. Another has a redshift nearby those of two groups, and a third lies in an apparent redshift overdensity. MG1131 and q0158 (which is at lower redshift), have tentative group identifications based on photometry.

In summary, 12 of 17 (71%) lenses at z < 0.6 are in groups. At z > 0.6, only one of five (20%) lenses with firm spectroscopic redshifts is a group member, suggesting significant incompleteness at high z. Our lenses reside in group environments at least half the time, and these groups have ${\sigma }_{\mathrm{grp}}$ comparable to others along the sightlines. We now investigate the lensing properties of these groups in more depth.

First, we summarize how convergence and shear enter into the calculation of H₀ from time-delay measurements (e.g., Suyu et al. 2013; for a review of time delay cosmography, see Treu & Marshall 2016).

The extra time it takes light from the source to reach the observer compared to if there were no lensing is

$$\begin{eqnarray}&&t({\boldsymbol{\theta }},{\boldsymbol{\beta }})=\displaystyle \frac{{D}_{{\rm{\Delta }}t}}{c}\left[\displaystyle \frac{{({\boldsymbol{\theta }}-{\boldsymbol{\beta }})}^{2}}{2}-\psi ({\boldsymbol{\theta }})\right],\end{eqnarray} \tag{ 1 }$$

where image angular position ${\boldsymbol{\theta }}=({\theta }_{1},{\theta }_{2})$, source position ${\boldsymbol{\beta }}=({\beta }_{1},{\beta }_{2})$, c is the speed of light, and $\psi ({\boldsymbol{\theta }})$ is the lens potential. ${D}_{{\rm{\Delta }}t}$ is the time-delay distance,

$$\begin{eqnarray}&&{D}_{{\rm{\Delta }}t}\equiv (1+{z}_{{\rm{L}}})\displaystyle \frac{{D}_{{\rm{L}}}{D}_{{\rm{S}}}}{{D}_{{\rm{LS}}}},\end{eqnarray} \tag{ 2 }$$

where z_L is the lens redshift and D_L, D_S, and D_LS are angular diameter distances between, respectively, the observer and the lens, the observer and the source, and the source and the lens. The time-delay distance is inversely proportional to H₀, as well as weakly dependent on other cosmological parameters.

Because of the mass sheet degeneracy, lensing data alone cannot constrain external convergence. Therefore it is common to fit models that omit convergence, which yield an estimate for the time delay distance of ${D}_{{\rm{\Delta }}t}^{\mathrm{model}}$. When external convergence is applied, the new estimate for ${D}_{{\rm{\Delta }}t}$ is

$$\begin{eqnarray}&&{D}_{{\rm{\Delta }}t}=\displaystyle \frac{{D}_{{\rm{\Delta }}t}^{\mathrm{model}}}{1-\kappa }.\end{eqnarray} \tag{ 3 }$$

Convergences thus enter the calculation as 1 − κ from the mass sheet degeneracy, and shear appears inside the model-dependent factor.

We calculate the effective convergence (${\kappa }_{\mathrm{eff}}$) and shear (${\gamma }_{\mathrm{eff}}$) for each group, as well as total convergence (${\kappa }_{\mathrm{tot}}$) and shear (${\gamma }_{\mathrm{tot}}$) for each field, using the following method.

Here we focus on determining the importance of groups to the lensing potential. We do not model the lens galaxy. We also do not consider any galaxies that have not been assigned to groups, leaving that to more detailed future modeling (e.g., Wong et al. 2011; McCully et al. 2017).

We assume that each group's mass is described by a group halo and that there is no appreciable mass bound to the individual group galaxies (the group halo limit). Using preliminary redshift catalogs for eight of these systems, Momcheva et al. (2006) find that assigning the mass to the group halo or to individual member galaxy halos does not affect which groups are significant to the lensing potential.

Using weak lensing measurements of galaxy groups with masses $\sim {10}^{13}\mbox{--}{10}^{14.5}\,{M}_{\odot }$, Viola et al. (2015) find that the density profiles agree with that expected for Navarro, Frenk, and White (NFW) profiles (Navarro et al. 1996). So, we model the groups in each lens field as NFW halos, estimating the scale radius r_s and central density ${\rho }_{{\rm{s}}}$ of a halo from its redshift and velocity dispersion using the results of simulations by Zhao et al. (2009). We assume the groups generally are virialized, as many have centrally concentrated early-type populations. For any non-virialized systems, the masses derived from the velocity dispersions here could be overestimated by up to $\sim 2\times$, if the measured dispersion is closer to the infall velocity. This systematic would bias the lensing contribution upward.

We then calculate the convergence (κ) and shear (γ) for each halo using the truncated NFW profile formalism given in Baltz et al. (2009) to calculate the projected surface mass density (${\rm{\Sigma }}(x)$) and the mean projected surface density ($\bar{{\rm{\Sigma }}}$). For these, we use $x=r/{r}_{{\rm{s}}}$, where r is the distance between the group center and the lens LOS at the redshift of the group, and $\tau =\tfrac{{r}_{{\rm{t}}}}{{r}_{{\rm{s}}}}$, where r_t is the truncation radius. We choose ${r}_{200{\rm{m}}}$ as our truncation radius (see Appendix C for a discussion). We calculate

$$\begin{eqnarray}&&{\kappa }_{{\rm{s}}}=\displaystyle \frac{{r}_{{\rm{s}}}{\rho }_{{\rm{s}}}}{{{\rm{\Sigma }}}_{\mathrm{crit}}},\end{eqnarray} \tag{ 4 }$$

and

$$\begin{eqnarray}&&{{\rm{\Sigma }}}_{\mathrm{crit}}=\displaystyle \frac{{c}^{2}}{4\pi G}\displaystyle \frac{{D}_{{\rm{S}}}}{{D}_{{\rm{P}}}{D}_{{\rm{PS}}}},\end{eqnarray} \tag{ 5 }$$

where D_S, D_P, and D_PS are the angular diameter distances between the observer and the source, the observer and the perturbing group, and the perturbing group and the source, respectively. Next, we calculate the convergence

$$\begin{eqnarray}&&\kappa =\displaystyle \frac{{\rm{\Sigma }}}{{{\rm{\Sigma }}}_{\mathrm{crit}}}\end{eqnarray} \tag{ 6 }$$

and the shear

$$\begin{eqnarray}&&\gamma =\displaystyle \frac{\bar{{\rm{\Sigma }}}-{\rm{\Sigma }}}{{{\rm{\Sigma }}}_{\mathrm{crit}}}\end{eqnarray} \tag{ 7 }$$

in the perturber's plane.

Now, as in Momcheva et al. (2006), we define

$$\begin{eqnarray}&&\beta =\displaystyle \frac{D({z}_{1},{z}_{2})D(0,{z}_{{\rm{S}}})}{D(0,{z}_{2})D({z}_{1},{z}_{{\rm{S}}})},\end{eqnarray} \tag{ 8 }$$

where

$$\begin{eqnarray}&&{z}_{1}=\min ({z}_{{\rm{L}}},{z}_{{\rm{P}}}),\end{eqnarray} \tag{ 9 }$$

and

$$\begin{eqnarray}&&{z}_{2}=\max ({z}_{{\rm{L}}},{z}_{{\rm{P}}}).\end{eqnarray} \tag{ 10 }$$

When the convergence and shear is due to a perturber, the expressions for its effective convergence and shear more generally are

$$\begin{eqnarray}&&{\kappa }_{\mathrm{eff}}=\displaystyle \frac{(1-\beta )[\kappa -\beta ({\kappa }^{2}-{\gamma }^{2})]}{{(1-\beta \kappa )}^{2}-{(\beta \gamma )}^{2}}\end{eqnarray} \tag{ 11 }$$

and

$$\begin{eqnarray}&&{\gamma }_{\mathrm{eff}}=\displaystyle \frac{(1-\beta )\gamma }{{(1-\beta \kappa )}^{2}-{(\beta \gamma )}^{2}},\end{eqnarray} \tag{ 12 }$$

as given in Keeton (2003). In this analysis, all groups are treated the same, regardless of whether the lens galaxy is a member. For the groups that do have lens galaxies as members, β is small, approaching zero for a lens that is near the velocity centroid of its group, so ${\kappa }_{\mathrm{eff}}$ and ${\gamma }_{\mathrm{eff}}$ will approach κ and γ.

We estimate the total effective convergence due to all the groups in the field for each lens LOS using

$$\begin{eqnarray}&&{\kappa }_{\mathrm{tot}}=\displaystyle \sum _{{i}}{\kappa }_{\mathrm{eff},{i}}\end{eqnarray} \tag{ 13 }$$

from Momcheva et al. (2006). We calculate the effective convergence due to each group halo, including the lens group halo, and sum them in each field to estimate the importance of LOS structures and lens environment for the lensing potential.

Since the shears add as tensors, we measure ${\theta }_{\gamma }$, the position angle measured north through east between the group projected spatial centroid and the lens. This definition is consistent with the direction in which the lensing critical curve is stretched but is orthogonal to the direction in which an image would be stretched.

We then calculate the total shear components for each field as

$$\begin{eqnarray}&&{\gamma }_{{\rm{c}},{\rm{tot}}}=\displaystyle \sum _{i}{\gamma }_{\mathrm{eff}}\cos 2{\theta }_{\gamma ,i},\end{eqnarray} \tag{ 14 }$$

$$\begin{eqnarray}&&{\gamma }_{{\rm{s}},{\rm{tot}}}=\displaystyle \sum _{i}{\gamma }_{\mathrm{eff}}\sin 2{\theta }_{\gamma ,i},\end{eqnarray} \tag{ 15 }$$

and

$$\begin{eqnarray}&&{\gamma }_{\mathrm{tot}}=\sqrt{{\gamma }_{{\rm{c}},\mathrm{tot}}^{2}+{\gamma }_{{\rm{s}},\mathrm{tot}}^{2}}.\end{eqnarray} \tag{ 16 }$$

The total position angle of the shear is

$$\begin{eqnarray}&&{\theta }_{\gamma ,\mathrm{tot}}=\displaystyle \frac{1}{2}\arctan \left(\displaystyle \frac{{\gamma }_{{\rm{s}},\mathrm{tot}}}{{\gamma }_{{\rm{c}},\mathrm{tot}}}\right).\end{eqnarray} \tag{ 17 }$$

These calculations for the total values assume that there are no lensing interactions between the halos which arise from cross-terms in the multi-plane lens equation, which is a simplification (see McCully et al. 2014).

We may underestimate the velocity dispersions of groups at z ≳ 0.6, because a lower fraction of true members may have been observed due to our lower sensitivity. This underestimate would result in an underestimation of their effect on the lensing. Thus, the true properties would result in stronger effects, making our results conservative.

Plots showing the distribution of the angular and redshift separation of groups from the lens color coded by their ${\kappa }_{\mathrm{eff}}$ are given in Figure 2. Sky plots of the fields with groups marked and their ${\gamma }_{\mathrm{eff}}$ values indicated are given in Figure 3. Groups contribute to the total convergence in several ways. Some fields have one dominant group, some have multiple important ones, and one has several unimportant groups that add up to a significant contribution. In the cases where there is one dominant group, this is not always the lens group. As shears can add or subtract depending on relative position angles, fields with multiple important groups can have larger or smaller ${\gamma }_{\mathrm{tot}}$.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

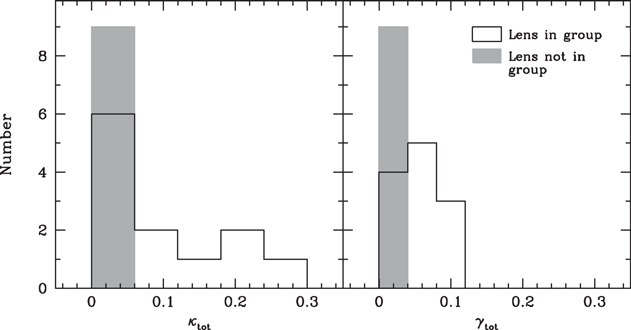

Figure 4 shows the histograms of ${\kappa }_{{\rm{tot}}}$ and ${\gamma }_{\mathrm{tot}}$ for fields with and without lens groups. A Kolmogorov–Smirnov (K-S) test comparing the unbinned distributions is significant at 95% confidence, suggesting that there is a tail to higher ${\kappa }_{{\rm{tot}}}$ and ${\gamma }_{\mathrm{tot}}$ in fields where the lens lies in a group. Furthermore, our bootstrap means comparison (Appendix B) indicates a <0.1% chance that the mean ${\kappa }_{\mathrm{tot}}$ and ${\gamma }_{\mathrm{tot}}$ for fields with lenses in groups are as small as the values for fields with lenses not in groups. Table 2 summarizes the lensing parameters for each field, and Table 3 lists the individual group properties and lensing parameters in each field.

Zoom In Zoom Out Reset image size

Table 3.  Lensing Properties of Groups

Field	Groupb	Nmc	${z}_{\mathrm{grp}}$ c	${\sigma }_{\mathrm{grp}}$ c	Rd	${\kappa }_{\mathrm{eff}}$	${\gamma }_{\mathrm{eff}}$	${\theta }_{\gamma }$ e
				[km s−1]	[']			[deg]
b0712	0	5	${0.0784}_{-0.0003}^{+0.0002}$	${140}_{-110}^{+30}$	16.0	⋯	⋯	177
	1	3	0.2635	130	12.6	⋯	⋯	104
	2	3	0.3483	110	6.8	⋯	⋯	102
	3	34	${0.3723}_{-0.0007}^{+0.0007}$	${870}_{-70}^{+70}$	7.7	${0.002}_{-0.001}^{+0.002}$	${0.016}_{-0.004}^{+0.005}$	150
	4	4	${0.3724}_{-0.0002}^{+0.0003}$	${170}_{-130}^{+60}$	15.1	⋯	⋯	32
	5	6	${0.4146}_{-0.0003}^{+0.0003}$	${180}_{-60}^{+40}$	14.1	⋯	⋯	−110
	6	4	${0.4360}_{-0.0006}^{+0.0004}$	${180}_{-150}^{+30}$	2.8	⋯	${0.001}_{-0.001}^{+0.001}$	−33
	7	5	${0.4938}_{-0.0006}^{+0.0007}$	${270}_{-230}^{+50}$	4.8	⋯	${0.001}_{-0.001}^{+0.001}$	−177
	ia	13	${0.4030}_{-0.0010}^{+0.0009}$	${800}_{-530}^{+140}$	1.1	${0.118}_{-0.014}^{+0.050}$	${0.115}_{-0.038}^{+0.047}$	−94
	ii	5	${0.6200}_{-0.0005}^{+0.0005}$	${260}_{-100}^{+50}$	9.1	⋯	⋯	−86
	sg0f	230	${0.2941}_{-0.0003}^{+0.0004}$	${1170}_{-50}^{+40}$	0.9	${0.308}_{-0.115}^{+0.229}$	${0.180}_{-0.042}^{+0.072}$	−88
	sg1g	54	${0.2898}_{-0.0002}^{+0.0002}$	${330}_{-30}^{+30}$	4.0	⋯	${0.003}_{-0.001}^{+0.001}$	85
	sg2g	51	${0.2961}_{-0.0002}^{+0.0002}$	${340}_{-30}^{+30}$	11.1	⋯	${0.001}_{-0.0002}^{+0.0002}$	−96
	sg3g	39	${0.2983}_{-0.0003}^{+0.0003}$	${420}_{-60}^{+60}$	8.6	⋯	${0.002}_{-0.001}^{+0.001}$	22
	LOS total, no supergroup					${0.002}_{-0.001}^{+0.001}$	${0.017}_{-0.004}^{+0.005}$	−30
	LOS total, supergroup					${0.311}_{-0.116}^{+0.229}$	${0.173}_{-0.048}^{+0.076}$	−85
	LOS total, supergroup substructures					${0.003}_{-0.001}^{+0.001}$	${0.014}_{-0.004}^{+0.005}$	−32
	Total, no supergroup					${0.120}_{-0.014}^{+0.050}$	${0.105}_{-0.024}^{+0.052}$	89
	Total, supergroup					${0.429}_{-0.126}^{+0.225}$	${0.284}_{-0.058}^{+0.087}$	−89
	Total, supergroup substructures					${0.121}_{-0.014}^{+0.050}$	${0.107}_{-0.026}^{+0.051}$	89

Notes. Table 3 is published in its entirety in the electronic edition of the Astrophysical Journal. A portion is shown here for guidance regarding its form and content.

^aLens group. ^bNumbering as in Wilson et al. (2016). ^cFrom Wilson et al. (2016). Uncertainties in group properties other than number of member galaxies are provided for groups with at least four members. ^dProjected distance between the group projected spatial centroid and the lens from Wilson et al. (2016). ^eAngle measured north through east between the group projected spatial centroid and the lens. ^fSupergroup. ^gMain substructures of the supergroup.

Only a portion of this table is shown here to demonstrate its form and content. A machine-readable version of the full table is available.

Download table as:  DataTypeset image

All statistical tests are performed on unbinned data; we bin only to visually present the data.

In these plots and tables, we include all 25 fields with spectroscopic or photometric lens and source redshift estimates. Field h12531 is discarded because it lacks a source redshift estimate. The fields surrounding four lenses without firm spectroscopic redshifts (h1413, h12531, q1017, and sbs1520) could not have lens groups identified, so for the rest of the analysis we discard them.

In field b0712, our group finding algorithm identifies a supergroup (a structure with multiple well-populated clumps in both velocity and projected on the sky; Wilson et al. 2016). We separately calculate the convergence and shear of the supergroup as a whole and for its three main substructures, as listed in Table 3 of Wilson et al. (2016). If the supergroup is treated as one monolithic halo, it is very significant (${\kappa }_{\mathrm{eff}}=$ ${0.308}_{-0.115}^{+0.229}$, ${\gamma }_{\mathrm{eff}}={0.180}_{-0.042}^{+0.072}$). If the mass distribution is better described by treating the substructures separately, none has ${\kappa }_{\mathrm{eff}}$ or ${\gamma }_{\mathrm{eff}}\geqslant 0.01$. Accurately determining how big an effect this supergroup has on the lensing potential requires further observations and analysis. We thus include this field in our field overview plots (Figures 2 and 3) and in our discussion of lens group environments (Section 5), but we discard it elsewhere because of these uncertainties.

We calculate uncertainties in our effective convergences and shears due to the uncertainty in the measured group properties using the bootstrap method. We resample with replacement the identified group members and recalculate ${z}_{\mathrm{grp}}$, ${\sigma }_{\mathrm{grp}}$, and the group projected spatial centroid for 1000 iterations. Using those recalculated group properties, we then calculate the resulting ${\kappa }_{\mathrm{eff}}$ and ${\gamma }_{\mathrm{eff}}$. We then calculate and subtract the median ${\kappa }_{\mathrm{eff}}$ and ${\gamma }_{\mathrm{eff}}$ values over all 1000 iterations and determine the 16th and 84th percentiles for individual groups as well as for ${\kappa }_{\mathrm{tot}}$ and ${\gamma }_{\mathrm{tot}}$.

The median values can differ from the measured values. Since we resample the observed group members with replacement, a bootstrap realization's velocity dispersion is more likely to be smaller than measured, leading to smaller convergences and shears. The fractional differences in the measured and median values (i.e., $({\kappa }_{\mathrm{eff},\mathrm{obs}}-{\kappa }_{\mathrm{eff},\mathrm{med}})/{\kappa }_{\mathrm{eff},\mathrm{obs}}$) show no strong trend with increasing lensing parameter value. Also, the mean fractional errors in the lensing parameters are almost twice as large as the mean fractional differences due to the bootstrap realizations (a fractional difference of the median from the observed convergence of 0.37 versus a fractional differences of the error in convergence from the observed convergence of 0.60, and 0.28 versus 0.50 for corresponding quantities for shear).

We do not incorporate uncertainty in the NFW concentration parameter associated with scatter in the mass/concentration relation. Wong et al. (2011) find that such uncertainties affect shears on the order of ≲0.01, generally when the group centroid is very close to the lens. In that case, other uncertainties, such as in the total mass, still dominate.

Prior work has been done on a subset of these fields using an earlier version of the redshift catalog and a different group catalog (e.g., Momcheva et al. 2006; Wong et al. 2011). The formalism we use here is different than used previously; for group halos, we use truncated NFW profiles whereas Momcheva et al. (2006) use isothermal spheres and Wong et al. (2011) use untruncated NFW profiles. Wong et al. (2011), Ammons et al. (2014) and McCully et al. (2017) fully model the lens mass distributions (i.e., with GRAVLENS; Keeton 2001) in several of these fields.

To see how our simple treatment compares, in one field (fbq0951) we calculate ${\kappa }_{\mathrm{eff}}$ and ${\gamma }_{\mathrm{eff}}$ for the groups with at least five galaxies and ${M}_{\mathrm{vir}}\gt {10}^{13}{M}_{\odot }$ using the methodology of Ammons et al. (2014). For ${\kappa }_{\mathrm{eff}}$ and ${\gamma }_{\mathrm{eff}}\gt 0.01$, generally for systems projected closer to the lens and/or with large velocity dispersions, our values agree within the large uncertainties caused by group property uncertainties. For smaller values of ${\kappa }_{\mathrm{eff}}$ and ${\gamma }_{\mathrm{eff}}$ our values are generally slightly smaller. This difference can be attributed to our using truncated NFW profiles, which result in smaller halo masses and projected surface mass densities when the halo is projected farther than the truncation radius from the lens sightline rather than the untruncated NFW halos that Ammons et al. (2014) use. Our ${\kappa }_{\mathrm{tot}}$ value is also slightly lower. This difference is partly due to our assuming a different mass profile. However, it is also partly because we assume that the halos affect the lensing potential independently; we would expect the results from the full treatment, which includes nonlinear effects of interactions between LOS halos (McCully et al. 2014), to be different. Overall, though, the agreement is reasonable; we calculate, using the subset of groups for this field, ${\kappa }_{\mathrm{tot}}={0.23}_{-0.06}^{+0.10}$ and 0.29 and ${\gamma }_{\mathrm{tot}}={0.04}_{-0.03}^{+0.04}$ and 0.04 for our formalism and that of Ammons et al. (2014), respectively.

Several of our systems have been previously identified as needing external shears to explain the image morphology and produce adequately-fitting models. We compare our calculated shears for these systems (b1422, mg1654, pg1115, and rxj1131) with the values reported by, respectively, Chiba (2002) and Nierenberg et al. (2014) (both for b1422), Wallington et al. (1996), Chiba (2002), and Claeskens et al. (2006) and Suyu et al. (2013) (both for rxj1131). Our ${\gamma }_{\mathrm{tot}}$ values agree with those in the literature within their 3σ uncertainties except for field rxj1131.

Claeskens et al. (2006) find that their best-fitting models of rxj1131 include external shear. Their best model (using a singular isothermal ellipsoid plus an octupole for the lens and external shear) has $\gamma =0.124$, much larger than what we calculate (${\gamma }_{\mathrm{tot}}={0.019}_{-0.010}^{+0.012}$). Suyu et al. (2013) model an external shear of ${0.089}_{-0.006}^{+0.006}$, which is also larger than we measure. However, they find a probability distribution function for the external convergence that peaks around 0.08, in qualitative agreement with our ${\kappa }_{\mathrm{tot}}={0.061}_{-0.016}^{+0.024}$.

The $z\sim 0.1$ cluster and the lens group both have possible X-ray detections in the literature (2–3×10⁴³ erg s⁻¹, Morgan et al. 2006). The velocity dispersions we measure are consistent with the observed X-ray luminosity–velocity dispersion relation, which has significant scatter, or larger than what would be predicted given the relation of Ortiz-Gil et al. (2004). So we are unlikely to be underestimating the lensing contributions due to these two groups.

We only consider lensing due to groups. Thus, we are not sensitive to additional shear caused by substructures within the lens. This insensitivity might be why our ${\gamma }_{\mathrm{tot}}$ for rxj1131 is significantly lower than that modeled by Claeskens et al. (2006) and Suyu et al. (2013). The latter downplay the possibility of substructure contributing to their modeled shear based on a modeled external convergence gradient and shear position angle. However, Keeton & Moustakas (2009) suggest the presence of substructure because of the order of image arrival time observed in time-delay measurements. Cyr-Racine et al. (2016) show, by modeling dark matter subhalos in lenses, that substructures could have an effect, but it is unlikely to be at the $\gamma \sim 0.1$ level. Others have suggested the possibility of lens substructure for b1422 and pg1115 (respectively, Bradač et al. 2002; Miranda & Jetzer 2007). The large uncertainties in our values might wash out the disagreement in these cases. Dark matter substructures are not the only possible explanation, however. Baryonic structures, such as disks, which we also do not model, can have similar effects (e.g., Hsueh et al. 2016, 2017; Gilman et al. 2017 ).

In addition, extensive lensing analyses on he0435 are being performed by the H0LiCOW team (Suyu et al. 2017). Sluse et al. (2017) conclude, using flexion shifts, that the groups they identify in this field can be approximated with external shear rather than being modeled explicitly. Rusu et al. (2017) constrain ${\kappa }_{{\rm{ext}}}$ to be near zero (${\kappa }_{{\rm{ext}}}^{{\rm{med}}}=0.004$), which is also consistent with the ${\kappa }_{{\rm{ext}}}$ determined from an independent weak lensing analysis of this field (O. Tihhonova et al. 2017, in preparation).

Some of this disagreement between their results and ours can be ascribed to differences in group catalogs and lensing methodology. Wilson et al. (2016) identify a larger group at $z\sim 0.18$ than do Sluse et al. (2017). Also, Wilson et al. (2016) use an unweighted centroid, which lies fairly close to the lens and leads to a large convergence ${\kappa }_{{\rm{lens}}}={0.091}_{-0.031}^{+0.110}$. By contrast, Sluse et al. (2017) use a luminosity-weighted centroid, which lies farther from the lens; if we use their centroid, we calculate ${\kappa }_{{\rm{lens}}}=0.035$. These values are still larger than the other estimates of convergence, so Sluse et al. (2017) suggest that the group centroid may actually lie even farther from the lens sightline, or that the lens is actually at the center of its group halo. Additional observations of this field might further constrain the group properties and reconcile these differences.

Groups at the lens can have large impacts on the lensing, as they are projected quite close on the sky and are, by definition, very near the lens redshift (presumably any difference being due to peculiar motion). Thus, we consider here the frequency of important lens groups in our sample. These results are shown in Figures 5, 6, and 7.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

5.1. Convergence

First, we consider ${\kappa }_{\mathrm{eff}}$ and its uncertainty, calculated as described in Section 3, for only lens groups (${\kappa }_{\mathrm{lens}}$, see Table 3). Five of 13 lens groups have ${\kappa }_{\mathrm{lens}}$ at or above 0.01 and are inconsistent with <0.01 within their 1σ uncertainties. Three of 13 have ${\kappa }_{\mathrm{lens}}\geqslant 0.05$.

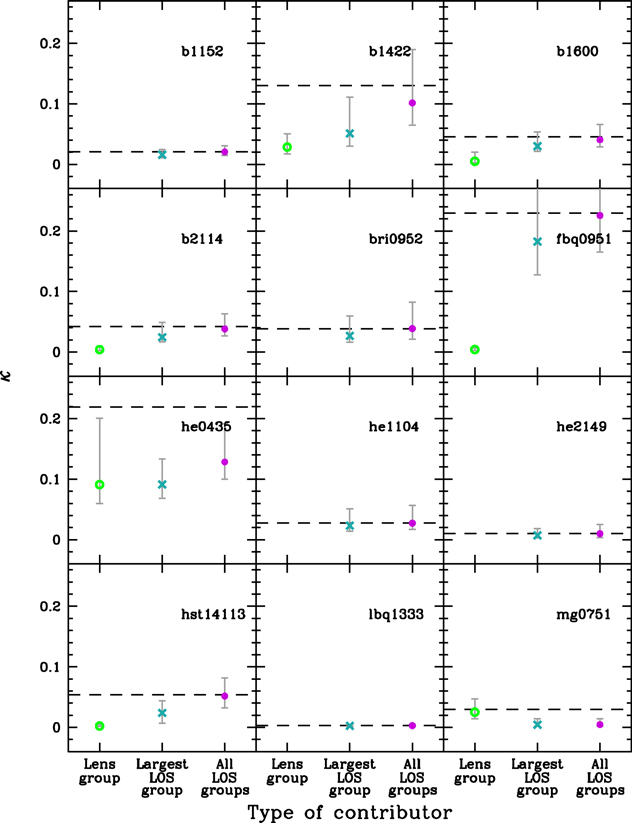

Next, we consider the fraction of the ${\kappa }_{\mathrm{tot}}$ that the lens group contributes (see Figures 5 and 6). While some lens groups dominate their fields, most make up a small fraction of the total convergence once LOS groups are considered; only in two fields do the lens groups make up >50% of ${\kappa }_{\mathrm{tot}}$.

Zoom In Zoom Out Reset image size

In summary, several of our fields have significant lens groups, but lens groups rarely are the only important group in the field.

5.2. Shear

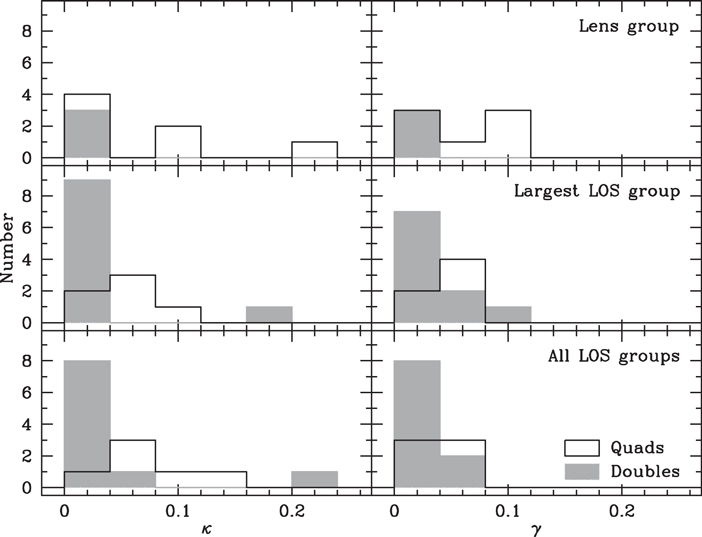

5.3. Lens Environments of Quads versus Doubles

Any mass along the LOS will bend light from a background source, so we consider the possible contribution to the lensing potential of groups along our lens LOSs. These results also are shown in Figures 5, 6, 7, and 8.

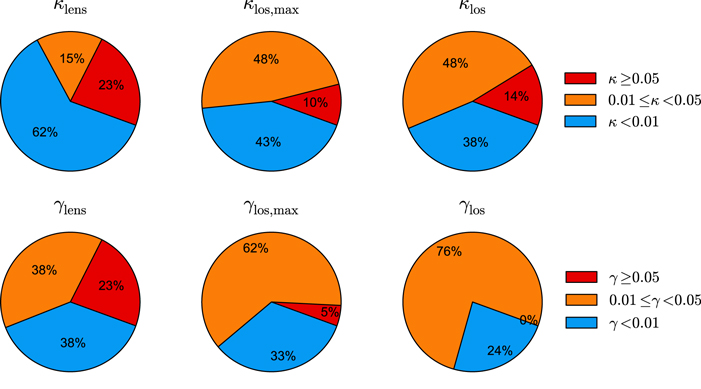

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

In future large surveys, scant resources may be available for the deep surveys that would be necessary to create a full group catalog like we use here. Photometric redshifts of sufficient quality to identify peaks in the LOS redshift distribution that indicate possible clusters and large groups likely will be available, however. So, we investigate whether prioritizing spectroscopic followup of the most significant LOS group would capture most of the LOS contribution from groups.

Ideally, a lens field would have extensive spectroscopic followup which could be used to identify and characterize all the LOS groups rather than just the most significant one. So, we also investigate the full LOS group distribution. We test how significant the LOS groups are as well as look for fields with a significant total LOS contribution but without any individually significant groups.

Although groups with larger convergences typically also have larger shears, there is some scatter in the relation. Thus, the group with the largest convergence is not necessarily that with the largest shear. In only one field of our 21 field subset is the LOS group with the largest ${\kappa }_{\mathrm{eff}}$ not also the LOS group with the largest ${\gamma }_{\mathrm{eff}}$.

6.1. Convergence

6.2. Shear

6.3. LOS Structures of Quads versus Doubles

To summarize, at least five of 22 (23%) of our systems with firm spectroscopic lens redshifts (including b0712) have lens groups with effective convergences that affect the lensing potential at the ≥1% level or greater (assuming the lens galaxy's convergence is ∼1; see, e.g., Keeton & Zabludoff 2004). Twelve of 21 (57%) of our fields with firm lens spectroscopic redshifts and no supergroup have at least one LOS group not at the lens redshift that contributes at the ≥1% level. The dominant contributor to ${\kappa }_{\mathrm{tot}}$ for fields with both a significant ${\kappa }_{\mathrm{tot}}$ and a lens group is more frequently a LOS group than a lens group. Considering all groups, 15 of 21 (71%) fields have ${\kappa }_{\mathrm{tot}}$ that will affect time-delay lens measurements of H₀ at the ≥1% level.

Often modelers assume that the lens galaxy and the lens environment are the only two important contributors to the lensing potential. Our results indicate that, while the lens environment can be important, in a substantial fraction of systems there also is significant LOS structure. Thus, if either lens groups or LOS groups are neglected, there could be significant systematic bias (an overestimate, since $h\propto (1-\kappa )$; see Keeton & Zabludoff 2004) in the derived H₀ if 1% accuracy is the goal.

As it will be observationally expensive to perform deep spectroscopic surveys in all of the several thousand lens fields LSST is expected to find, an alternative method to account for group-scale perturbations would be to statistically correct the derived H₀ given some average convergence. This general approach of calibrating a lensing parameter is already being used; Rusu et al. (2017) use sightlines through simulations that are similar to observed lens sightlines to constrain the external convergence of individual lens systems, for example. Here, we calculate the average convergences of the nine time-delay lens systems in our sample. If the convergences from lens environments and LOS groups are ignored, the resulting H₀ would be overestimated by ${11}_{-2}^{+3}$% on average. If only LOS groups are ignored, then H₀ would be overestimated by ${7}_{-2}^{+3}$%. This calibration will improve with larger and thus more representative samples.

Although ${\gamma }_{\mathrm{tot}}$ can be inferred from lens models of measured image separations, ${\kappa }_{\mathrm{tot}}$ is unconstrained because of the mass sheet degeneracy. However, neglecting the contributions of lens environment and LOS structures to ${\kappa }_{\mathrm{tot}}$ can bias derived parameters, such as H₀ (as discussed in Section 7) and ${{\rm{\Omega }}}_{{\rm{\Lambda }}}$ (Keeton & Zabludoff 2004). Here we compare the measured ${\kappa }_{\mathrm{tot}}$ to the measured ${\gamma }_{\mathrm{tot}}$ from our fields to quantify their relationship and to estimate how predictive a lens-model-derived ${\gamma }_{\mathrm{tot}}$ might be of that system's ${\kappa }_{\mathrm{tot}}$.

We calculate both ${\kappa }_{\mathrm{tot}}$ and ${\gamma }_{\mathrm{tot}}$ for each of our lens fields using our group catalog. We note that our dynamical measure of ${\gamma }_{\mathrm{tot}}$ can differ from that derived via lens modeling of image separations (see Wong et al. 2011). Our shear is by definition large-scale. If there is any small-scale shear due to the structure of the main lens galaxy itself (e.g., a misalignment of the stellar and dark matter components, dark matter substructure, or baryonic structures) it would be reflected in the lens-modeling-derived shear but not our calculation of ${\gamma }_{\mathrm{tot}}$. However, our values agree within the uncertainties for three of the four systems for which lens-derived measurements are available in the literature (see Section 4).

There should be a physical relation between shear and convergence, since they both arise from the mass distribution. Being able to estimate convergence from the shear inferred from lens models, perhaps with some adjustments from photometric observables like galaxy number density (e.g., Suyu et al. 2013), could help select "golden lenses," i.e., low-convergence systems, from a large lens sample, thus prioritizing the more laborious spectroscopic followup. Here we use our measurements to calibrate directly the relation between ${\kappa }_{{\rm{tot}}}$ and ${\gamma }_{{\rm{tot}}}$.

In Figure 9 we plot ${\kappa }_{\mathrm{tot}}$ and ${\gamma }_{\mathrm{tot}}$ for our fields and fit a power law to the relation. We find the geometrical mean of the two-sided error bars on ${\kappa }_{\mathrm{tot}}$ and ${\gamma }_{\mathrm{tot}}$, which were calculated from the uncertainties in measured group properties using the bootstrap method (see Section 3). The ${\chi }^{2}$ fit using the resulting uncertainties, and the uncertainties in the slope and intercept, is $\mathrm{log}({\kappa }_{\mathrm{tot}})=(1.94\pm 0.34)\mathrm{log}({\gamma }_{\mathrm{tot}})+(1.31\pm 0.49)$. The root mean square error is 0.34 dex. The linear Pearson correlation coefficient of $\mathrm{log}({\kappa }_{\mathrm{tot}})$ versus $\mathrm{log}({\gamma }_{\mathrm{tot}})$ is 0.77.

Zoom In Zoom Out Reset image size

The slope of the relation is steeper than $\kappa =\gamma$. This slope is affected by the shape of the assumed density profiles of the individual group halos. At small shears and convergences, the ${\gamma }_{{\rm{eff}}}$ of individual halos tends to be larger than ${\kappa }_{{\rm{eff}}}$ for NFW halos. This relation between the individual halo values approaches $\kappa =\gamma$ then becomes more steep at large convergence and shear because of the shape of the inner regions of NFW halos (see Appendix C and Oguri et al. 2005). These values are combined differently to calculate ${\kappa }_{\mathrm{tot}}$ and ${\gamma }_{\mathrm{tot}};$ convergences simply add, but shears add as tensors. As groups' contributions are added up, convergences always increase, but shears can increase or decrease depending on the groups' relative positions on the sky. As the strength of the contribution from multiple LOS perturbers increases, fields consequently are pushed to the upper left of the $\kappa =\gamma$ relation. If a field's large convergence and shear is due to a single structure, then the total field values do not necessarily move above the relation. Fields with few and/or very insignificant groups may remain below the $\kappa =\gamma$ relation if the sum of the ${\kappa }_{{\rm{eff}}}$ is not enough to overcome their initial deficit compared to ${\gamma }_{{\rm{eff}}}$.

Recently, investigators have used a combination of galaxy counts and cosmological simulations to constrain ${\kappa }_{\mathrm{tot}}$. For example, Suyu et al. (2013) calculate the galaxy counts, external shears, and convergences in 64 simulated sightlines in the Millennium Simulation and then select the sightlines that best match the observed lens sightline to constrain the likely value of convergence external to the main galaxy lens. Greene et al. (2013) and Rusu et al. (2017) use a similar technique but with weighted number counts as well as external shear in the latter study.

Does incorporating the normalized galaxy number density along the sightline to reduce the scatter in our ${\kappa }_{{\rm{tot}}}$ versus ${\gamma }_{{\rm{tot}}}$ relation? We would expect lens LOSs to have larger overdensities, since most lens galaxies are massive galaxies that preferentially reside in higher-density environments (e.g., Hilbert et al. 2007; Fassnacht et al. 2011). To calculate this overdensity, or normalized galaxy number density (${N}_{{\rm{gal}},{\rm{norm}}}$), we divide the number of galaxies in our photometry with $I\lt 21.5$ mag within ${2}^{{\prime} }$ of the lens by the median number of such galaxies in random sightlines chosen in the following way in the same field.

We examine all the objects, stars as well as galaxies, in the photometric fields to mask out regions that could have depressed galaxy counts, including blank regions from non-operational CCDs, obvious chip gaps due to inadequately dithered exposures, and regions near bright stars. We mask out the lens sightlines when selecting random sightlines. We include only random sightlines that lie completely within the well-sampled field. We discard random sightlines that overlap the masked regions until we have 1000 acceptable sightlines per field.

We calculate the partial correlation coefficient of log(${\kappa }_{\mathrm{tot}}$) versus log(${\gamma }_{\mathrm{tot}}$) removing the effects of ${N}_{{\rm{gal}},{\rm{norm}}}$. The value, 0.77, is the same as without considering ${N}_{{\rm{gal}},{\rm{norm}}}$. There is also no significant correlation between the offset of a field from the best-fit line and ${N}_{{\rm{gal}},{\rm{norm}}}$. Thus, it is not obvious that incorporating the normalized galaxy number density improves our correlation.

Overall, the ${\gamma }_{\mathrm{tot}}$ does not always predict ${\kappa }_{\mathrm{tot}}$ well. Four of 21 fields (19%) have ${\kappa }_{\mathrm{tot}}/{\gamma }_{\mathrm{tot}}\geqslant 2$; all have ${\kappa }_{\mathrm{tot}},{\gamma }_{\mathrm{tot}}\gt$ 0.01. The ${\kappa }_{\mathrm{tot}}$ inferred directly from ${\gamma }_{\mathrm{tot}}$ will thus be underestimated by ≥0.01, leading to a ≥1% bias in H₀. Our ${\gamma }_{\mathrm{tot}}$ and ${\kappa }_{\mathrm{tot}}$ measurements have large uncertainties, so how far a field might actually be off the relation is uncertain. However, in our bootstrap iterations of our group catalog, 16% have ${\kappa }_{\mathrm{tot}}/{\gamma }_{\mathrm{tot}}\geqslant 2$, and 0.5% have ${\kappa }_{\mathrm{tot}}/{\gamma }_{\mathrm{tot}}\geqslant 10$.

If only the lens group contribution to the shear is known, one should be especially cautious of using this shear to predict the field's ${\kappa }_{\mathrm{tot}}$. For our measured groups, 10 of 12 fields with lens groups (83%) have ${\kappa }_{\mathrm{tot}}/{\gamma }_{\mathrm{lens}}\geqslant 2$. One of 12 (8%) has ${\kappa }_{\mathrm{tot}}/{\gamma }_{\mathrm{lens}}\geqslant 10$. In our bootstrap iterations, 63% have ${\kappa }_{\mathrm{tot}}/{\gamma }_{\mathrm{lens}}\geqslant 2$, and 17% have ${\kappa }_{\mathrm{tot}}/{\gamma }_{\mathrm{lens}}\geqslant 10$.

The shear of the LOS group with the largest shear is better at predicting the field's ${\kappa }_{\mathrm{tot}}$. For our measured groups, 5 of 21 fields (24%) have ${\kappa }_{\mathrm{tot}}/{\gamma }_{\mathrm{los},\max }\geqslant 2$. One of 21 (5%) has ${\kappa }_{\mathrm{tot}}/{\gamma }_{\mathrm{los},\max }\geqslant 10$. In our bootstrap iterations, 25% have ${\kappa }_{\mathrm{tot}}/{\gamma }_{\mathrm{los},\max }\geqslant 2$, and 3% have ${\kappa }_{\mathrm{tot}}/{\gamma }_{\mathrm{los},\max }\geqslant 10$.

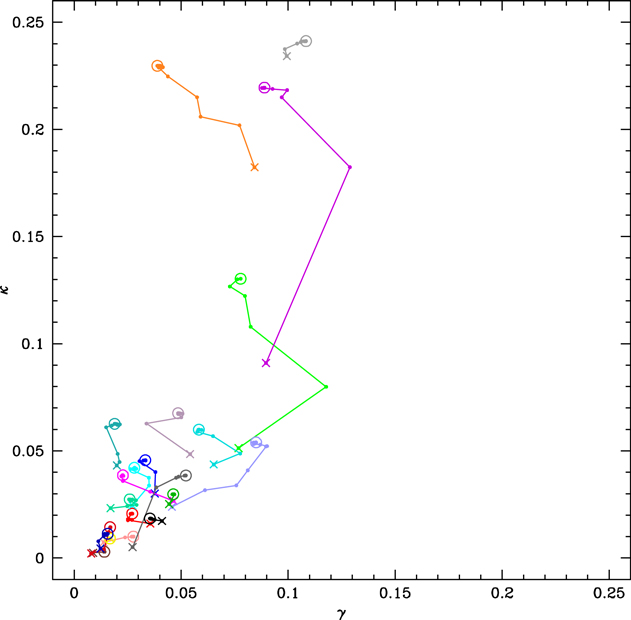

Figure 10 illustrates how many groups are significant contributors to ${\kappa }_{\mathrm{tot}}$ and ${\gamma }_{\mathrm{tot}}$, as well as how adding each group affects ${\gamma }_{\mathrm{tot}}$ and ${\kappa }_{\mathrm{tot}}$. We sort the groups within a field from largest ${\gamma }_{\mathrm{eff}}$ to smallest and calculate ${\gamma }_{\mathrm{tot}}$ and ${\kappa }_{\mathrm{tot}}$ after adding each group one at a time. We plot the resulting tracks in Figure 10.

Zoom In Zoom Out Reset image size

There is a diversity of tracks. As is also evident in Figures 2 and 3, some fields have one group that dominates, others have one or two that are of similar importance, and others have several significant groups. Figure 3 illustrated how the distribution of groups on the sky in our fields can affect ${\gamma }_{\mathrm{tot}}$ as well. Some fields' groups with the largest ${\gamma }_{\mathrm{eff}}$ have similar ${\gamma }_{\mathrm{eff}}$ and ${\kappa }_{\mathrm{eff}}$ but end up with total field values that are in different parts of the plot (e.g., the magenta, green, and light blue fields in Figure 10). Other fields have total values that are similar but have groups with the largest ${\gamma }_{\mathrm{eff}}$ with ${\gamma }_{\mathrm{los},\max }$ and ${\kappa }_{\mathrm{los},\max }$ that were different (e.g., the gray and purple fields near the top of Figure 10).

From this analysis, the scatter and best-fit relation of log(${\gamma }_{\mathrm{tot}}$) and log(${\kappa }_{\mathrm{tot}}$) appear to be driven by the number of groups and their relative placement on the sky. Two fields can have similar ${N}_{{\rm{gal}},{\rm{norm}}}$ but very different ${\gamma }_{\mathrm{tot}}$ because the two most important groups are oriented differently on the sky (∼90° apart around the lens instead of ∼180° or 0° apart) or because the galaxies are mostly in one group (which then dominates the lensing perturbation) rather than split into many (which can have canceling ${\gamma }_{\mathrm{eff}}$).

Cosmological constraints on H₀ from strong gravitational lensing measurements now aim for percent or even sub-percent precision, a goal directly depending on the uncertainty in the convergence (κ). Unlike shear (γ), κ is not directly measured by lensing observations, only inferred from assumptions about the mass distribution. Here we use kinematic measurements of the mass distribution of the lens environment and along the line-of-sight (LOS) to constrain κ directly, quantifying how much ignoring the contributions of lens environment and LOS structures might bias H₀ determinations. We also determine γ from our kinematic measurements, quantifying the effects on γ due to lens environment and the LOS and comparing them to the precision of current γ measurements from lens imaging. Since shears enter the lens equation as γ multiplied by the uncertainty in lens image position (typically $\sim 0\buildrel{\prime\prime}\over{.} 003$; Courbin et al. 1997), shears of 0.01 lead to $\sim 3\sigma$ effects. We also evaluate the usefulness of γ as a predictor of κ.

To test these effects on κ and thus on H₀, we consider two significance thresholds: $\kappa \geqslant 0.01$ and 0.05. The former is consistent with the percent target on H₀ (LSST Dark Energy Science Collaboration 2012); the latter is the approximate level of current discrepancies among H₀ determinations from different methods (e.g., Riess et al. 2011; Bennett et al. 2014; Planck Collaboration et al. 2016; Wong et al. 2017). We consider the same thresholds for assessing significant lens environment or LOS contributions to γ, given that shears of ≥0.01 correspond to $\sim 3\sigma$ effects compared with the observed image position uncertainties, making heretofore ignored contributions at the >0.01 level problematic.

In Wilson et al. (2016), we identified massive groups around the lens galaxy and along the sightline in the fields of 26 strong lensing galaxies. Here, we assess the significance of those lens' environments and LOSs in our cleanest 21 fields.

Our main results are as follows.

• The total convergence due to any group at the lens and along the sightline ranges from ${\kappa }_{\mathrm{tot}}\lt 0.01$ to 0.24. The total shear ${\gamma }_{\mathrm{tot}}$ ranges from <0.01 to 0.11.
• Lens groups are often important: five of 22 (23%) have ${\kappa }_{\mathrm{eff}}\geqslant 0.01$, and three (14%) have ${\kappa }_{\mathrm{eff}}\geqslant 0.05$. Considering shear, eight (36%) have ${\gamma }_{\mathrm{eff}}\geqslant 0.01$, and three (14%) have ${\gamma }_{\mathrm{eff}}\geqslant 0.05$.
• LOS groups (not at the lens redshift) are also often important. In 12 of 21 fields (57%), there is at least one LOS group with ${\kappa }_{\mathrm{eff}}\gt 0.01$, and 2 (10%) have ${\kappa }_{\mathrm{eff}}\geqslant 0.05$. Fourteen fields (67%) have at least one LOS group with ${\gamma }_{\mathrm{eff}}\geqslant 0.01$, and 1 (5%) has ${\gamma }_{\mathrm{eff}}\geqslant 0.05$.
• LOS groups can be more important than the lens group. In fields with lens groups and ${\kappa }_{\mathrm{tot}}\geqslant 0.01$, the LOS group with the largest ${\kappa }_{\mathrm{eff}}$ contributes ≥2× more to ${\kappa }_{\mathrm{tot}}$ than the lens group ∼67% of the time.
• Previous studies (e.g., Keeton & Zabludoff 2004; Momcheva et al. 2006) suggest that lens environment is connected to the relative numbers of systems with four and two images (the quad/double ratio) and why more quads are observed than expected (Kochanek 1996). All seven of our quad lenses, but only three of 10 doubles, are in groups, a statistically significant difference. There is a population of quad lens groups with large ${\kappa }_{\mathrm{eff}}$ that has no counterpart for doubles. Thus, lens groups are important for the quad/double ratio. The effects of the LOS structures are not as obvious: we do not find a statistically significant difference between the LOS convergences for quads versus doubles.
• Without proper calibration, shear can be a poor predictor of convergence. The correlation is significant with the form $\mathrm{log}({\kappa }_{\mathrm{tot}})=(1.94\pm 0.34)\mathrm{log}({\gamma }_{\mathrm{tot}})+(1.31\pm 0.49)$ with a rms scatter of 0.34 dex. ${\gamma }_{\mathrm{tot}}$ underestimates ${\kappa }_{\mathrm{tot}}$ by $\geqslant 2\times$ for four of 21 (19%) of our fields. If ${\gamma }_{\mathrm{tot}}\geqslant 0.01$, then the ${\kappa }_{\mathrm{tot}}$ inferred directly from ${\gamma }_{\mathrm{tot}}$ would be underestimated by ≥0.01, leading to a ≥1% bias in H₀. The offset from our best fit ${\kappa }_{\mathrm{tot}}$ vs. ${\gamma }_{\mathrm{tot}}$ relation is not well-correlated with lens sightline galaxy number density, suggesting that it is difficult to simply correct γ by galaxy density to get κ.

In summary, groups contribute significantly to the convergence in 15 of the 21 fields here. These groups can be in the lens environment and/or along the LOS. For four fields, the lens group alone is significant. For 10 fields without a significant lens group, an LOS group alone is significant. For one field, several individually insignificant groups add to contribute a significant total convergence.

Groups contribute significantly to the shear in 18 of the 21 fields analyzed. For seven fields, the lens group alone is significant. For nine fields without a significant lens group, an LOS group alone is significant. For four fields, several individually insignificant groups add to contribute a significant total shear. For two fields, the total shear is not significant although an individual group's shear is because the shears of multiple groups cancel, as shears add as tensors. These shears due to groups will affect overall shear measurements comparably or more than the 3σ uncertainties in measured image positions.

To use galaxy-scale gravitationally lensed systems to determine cosmological parameters to the ≲1% level—an LSST goal—it is critical to characterize and/or correct for both lens environments and LOS structures. For example, if the nine time-delay lens systems in our sample are representative of those used in ensemble H₀ calculations, H₀ is overestimated by ${11}_{-2}^{+3}$% on average if both LOS and the local lens environment are ignored. If only the LOS contribution is ignored, then the H₀ bias is ${7}_{-2}^{+3}$%. Future surveys including volume-limited lens samples will reveal how general these results are.

We thank the anonymous referee for helpful comments. M.L.W. and A.I.Z. acknowledge support from NSF grant AST-1211874. M.L.W. also thanks the Technology and Research Initiative Fund (TRIF) Imaging Fellowship program for its support. C.R.K. acknowledges support from NSF grant AST-1211385. K.C.W. is supported by an EACOA Fellowship awarded by the East Asia Core Observatories Association, which consists of the Academia Sinica Institute of Astronomy and Astrophysics, the National Astronomical Observatory of Japan, the National Astronomical Observatories of the Chinese Academy of Sciences, and the Korea Astronomy and Space Science Institute.

Facilities: Mayall (Mosaic-I) - , Blanco (Mosaic-II) - , Magellan-1 (LDSS-2 - , LDSS-3) - , Magellan-2 (IMACS) - , MMT (Hectospec) - .

Here we present the references for the discoveries and lens and source redshifts for the systems in our sample (see Table 4).

We would like to compare the mean values of several distributions in this work that are obviously non-Gaussian. We therefore perform the following bootstrap method-based test.

Consider two distributions, A and B, where the number of samples in A (N_A) is larger than the number of samples in B (N_B). We randomly select N_B values from distribution A for 1000 trials. We then find the fraction of trials in which the resulting mean values are at least as extreme as distribution B's measured mean. For example, if B's measured mean is greater than the measured mean of A, we thus calculate the fraction of trials that result in means at least as large.

What group halo mass profile we assume, i.e., where or if we truncate it, could affect our results. There is certainly mass associated with groups outside $1{r}_{\mathrm{vir}}$. Urban et al. (2014) detect the Perseus cluster's intracluster medium beyond the virial radius in five of the eight radial directions they probe. Bahé et al. (2013) and Zinger et al. (2016) have found cluster hot gas halos to extend beyond $1{r}_{\mathrm{vir}}$ (to at least 5r₂₀₀ and to $\sim 2\mbox{--}3{r}_{\mathrm{vir}}$, respectively). Bahé et al. (2013), in their simulations, identify galaxies that are bound to the group and mostly have passed within $1{r}_{\mathrm{vir}}$ but are on orbits with apocenters out to $\sim 3{r}_{200}$, which motivated us in part to accept group members out to $3{r}_{\mathrm{vir}}$ (Wilson et al. 2016).

The splashback radius is another possible halo edge definition. This radius is where there is a steepening in the halo density profile due to a pileup of the apocenters of the matter that has been most recently accreted. Adhikari et al. (2014), using an analytical toy model, predict this radius to be ∼0.8–1r_200m but found that it depends on accretion rate and redshift. More et al. (2015), using simulations, also find that this radius depends on halo accretion rate but is typically around 0.8-1.5r_200m. In another refinement, Mansfield et al. (2017) develop an algorithm to identify splashback shells that allows for asphericity. They find slightly larger radii for halos with higher mass accretion rates and an overall splashback radius range of ∼1–1.6r_200m. Observations suggest slightly smaller than expected splashback radii. For example, More et al. (2016) calculate splashback radii of ∼0.6–1r_200m in their study of galaxy number densities around SDSS clusters.

It is unclear how well an NFW profile describes the outskirts. NFW profiles were developed from virialized halos in simulations (Navarro et al. 1997); our groups might not all be relaxed (see Section 3). Outer cluster halos in simulations and some observations often have complex structures and are not always described well by NFW profiles. For example, in their X-ray study of the Perseus cluster, Urban et al. (2014) find azimuthal variations and departures from expectations from numerical simulations; at $r\gt 0.4{r}_{200}$, the average density profile's power law index is significantly smaller than predicted as well as there being differences in the entropy and pressure profiles. They attribute these differences to gas being clumpy instead of smoothly distributed as models approximate. However, the weak lensing analysis of Umetsu et al. (2011) find that, for the four of their five clusters not undergoing mergers, an untruncated NFW profile is consistent with their lensing measurements over their fields, which extend out to 1.2–1.7r₂₀₀. Umetsu & Diemer (2017), using combined strong and weak lensing, find that NFW profiles adequately describe the profiles of 16 Cluster Lensing and Supernova survey with Hubble clusters out to $\sim 2.5\,{h}^{-1}$ Mpc ($\sim 1.2{r}_{200{\rm{m}}}$), outside of which the profile flattens. In addition, the above simulations and observations mostly focus on cluster-sized halos, not the groups that make up most of our catalog.

As there is some ambiguity as to how to describe the mass outside $1{r}_{\mathrm{vir}}$ for our groups and to the best description of the halo edge, we conservatively choose a truncation radius of 1r_200m for our main analyses.

We recalculate ${\kappa }_{\mathrm{eff}}$ and ${\gamma }_{\mathrm{eff}}$ using untruncated NFW profiles to see how this choice affects our results (see Figure 11).

Zoom In Zoom Out Reset image size

For either truncation choice, ${\kappa }_{\mathrm{eff}}$ is smaller than ${\gamma }_{\mathrm{eff}}$ at low values, although in general groups with higher ${\kappa }_{\mathrm{eff}}$ also have higher ${\gamma }_{\mathrm{eff}}$. Convergence is a local quantity and depends on the projected mass surface density at the projected separation of the perturber's center from the main lens. Shear, however, is a large-scale quantity that depends on the total projected enclosed mass as well as projected distance from the lens. For a group projected much farther from the lens than the truncation radius, the mass surface density of the group halo projected directly in front of the lens will be quite small, so ${\kappa }_{\mathrm{eff}}$ will be very small. ${\gamma }_{\mathrm{eff}}$ will also be small; however, it will not be as small as ${\kappa }_{\mathrm{eff}}$, because the total projected enclosed mass does not get smaller with increasing distance from the group center like mass surface density does. In the extreme case of a point mass projected at some distance from the lens, the convergence would be zero but the shear would be nonzero.

At high ${\kappa }_{\mathrm{eff}}$ and ${\gamma }_{\mathrm{eff}}$, ${\kappa }_{\mathrm{eff}}$ versus ${\gamma }_{\mathrm{eff}}$ is closer to a $\kappa =\gamma$ relation. In the inner part of NFW halos, ${\kappa }_{\mathrm{eff}}$ diverges logarithmically while ${\gamma }_{\mathrm{eff}}$ converges to a constant. So, as a halo is projected increasingly closer to the lens, the convergence grows more rapidly than the shear. Thus, the convergence and shear can approach and pass the $\kappa =\gamma$ relation at very small projected distances from the lens. However, it is unlikely for a group to be projected exactly in front of the lens, so few of our groups lie above the $\kappa =\gamma$ line.

Generally, the ${\kappa }_{\mathrm{eff}}$ for our groups using NFW halos truncated at r_200m agree with those calculated using untruncated NFW profiles at ${\kappa }_{\mathrm{eff},\mathrm{untruncated}}\gtrsim 0.002$, and with ${\gamma }_{\mathrm{eff},\mathrm{untruncated}}$ values for the whole measured range, within the uncertainties in the values calculated using the truncated halos due to uncertainties in the measured group properties (see Section 3 for a description of our uncertainty estimation). So which, if any, truncation radius we choose should not affect our results much more than the uncertainties in the group properties, although those uncertainties are random and these due to the truncation radius are systematic. Those groups with ${\kappa }_{\mathrm{eff},\mathrm{truncated}}\geqslant 0.01$ and ${\gamma }_{\mathrm{eff},\mathrm{truncated}}\geqslant 0.01$ underestimate the untruncated values by a median fractional error of 24% and 3%, respectively; those with $0.001\leqslant {\kappa }_{\mathrm{eff},\mathrm{truncated}}\lt 0.01$ and $0.001\leqslant {\gamma }_{\mathrm{eff},\mathrm{truncated}}\lt 0.01$ have a median fractional error of 59% and 22%, respectively.

We repeat the main tests in our analysis as well. The quantitative results agree with each other within the uncertainties and do not affect our overall qualitative conclusions except in the following cases.

A larger fraction, 10 of 21 rather than 5 of 21, of our fields have ${\kappa }_{\mathrm{tot}}/{\gamma }_{\mathrm{eff},\mathrm{los}}\geqslant 2$. This still supports our result that the LOS group with the largest shear is a better predictor of the ${\kappa }_{\mathrm{tot}}$ than the lens group, but it is not as good a predictor as when truncated halos are used.

In the bootstrap realizations of the group catalog, slightly different fractions of the sample are found to have large differences between κ and γ. With untruncated halos, 24% have ${\kappa }_{\mathrm{tot}}/{\gamma }_{\mathrm{tot}}\geqslant 2$, and 0.8% have ${\kappa }_{\mathrm{tot}}/{\gamma }_{\mathrm{tot}}\geqslant 10$; 72% ${\kappa }_{\mathrm{tot}}/{\gamma }_{\mathrm{eff},\mathrm{lens}}\geqslant 2$, and 19% have ${\kappa }_{\mathrm{tot}}/{\gamma }_{\mathrm{eff},\mathrm{lens}}\geqslant 10$; 40% have ${\kappa }_{\mathrm{tot}}/{\gamma }_{\mathrm{eff},\mathrm{los}}\geqslant 2$, and 4% have ${\kappa }_{\mathrm{tot}}/{\gamma }_{\mathrm{eff},\mathrm{los}}\geqslant 10$. Our qualitative results that κ is not a close predictor of γ is unaffected, however.

Some of the difference between the values calculated using truncated versus untruncated halos might be reduced by including a void correction like that applied in McCully et al. (2017). We do not investigate this issue quantitatively. Since the choice makes little qualitative difference to our main results even without the void correction, it should not significantly impact our results.
