THE ATACAMA COSMOLOGY TELESCOPE: THE POLARIZATION-SENSITIVE ACTPol INSTRUMENT

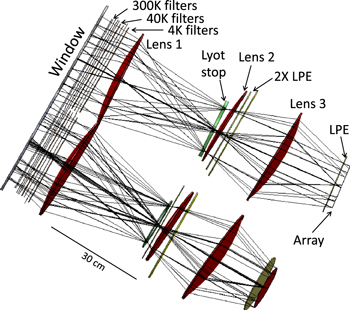

Three independent cryogenic optics tubes are used to reimage the Gregorian focus of the telescope onto the detector arrays. These refractive optics are designed to maximize the optical throughput and instrument sensitivity. Each optics tube uses three antireflection (AR) coated silicon lenses to reimage a ∼1° diameter portion of the Gregorian focus. The primary elements of each set of camera optics are a cryostat window and IR blocking filters (Tucker & Ade 2006) at ambient temperature; followed by a combination of blocking filters and low-pass edge (LPE) filters (Ade et al. 2006) at 40 K; the first lens and accompanying filters at 4 K; the Lyot stop, two more lenses, and additional low-pass filters all at 1 K; and the final LPE filter and array package at 100 mK. A ray trace of the cold optics is shown in Figure 4.

Zoom In Zoom Out Reset image size

The size of each optics tube is limited by both the size of the cryostat (which had to fit in the existing receiver cabin) as well as the maximum diameter of the LPE filters (Section 4.3). To minimize the size of the entrance optics, the receiver is positioned such that the Gregorian focus is located between the receiver window and the first lens. The Gregorian focus is not telecentric, which is a requirement for a large, flat feedhorn-coupled detector array (see Hanany et al. 2013). To achieve a telecentric design, small offsets and tilts were incorporated into the three lenses. The final design is diffraction-limited across each focal plane.

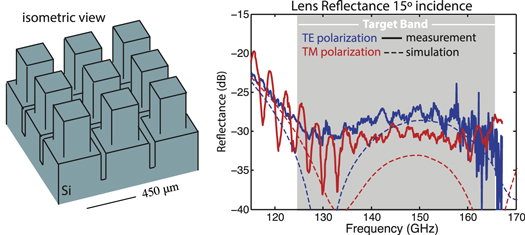

Silicon was chosen for the lens material due to its high thermal conductivity, high index of refraction (n = 3.4), and low loss at our wavelengths. The high index of refraction necessitates the use of AR coatings. ACT previously used Cirlex coatings (Lau et al. 2006), but they incurred an estimated 15% net efficiency reduction (Swetz et al. 2011). For ACTPol, we created "meta material" AR coatings produced by removing some of the silicon to controlled depths from the surfaces of each lens at sub-wavelength scales using a custom three-axis silicon dicing saw, creating layers of square pillars. The resulting coating has a coefficient of thermal expansion matching that of the rest of the lens. Lenses based on a two-layer design (Figure 5(a)) are used in both the PA1 and PA2 optics. Simulations showed that the resulting coating has low-reflection (<1%) for angles of incidence up to 30° with low cross-polarization (Datta et al. 2013). Figure 5(b) shows reflectance measurements verifying the simulated performance. Transmission measurements were not performed on the deployed lenses due to the difficulty of dealing with curved surfaces as well as the measured loss tangent (tan δ < 7 × 10⁻⁵) of silicon at cryogenic temperatures (Datta et al. 2013). The meta material method was extended to a three-layer pillar design for the wider bandwidth of PA3. The measured performance agrees with predictions, and both PA1/2 and PA3 are consistent with sub-percent level reflections (Datta et al. 2016).

Zoom In Zoom Out Reset image size

Each optics tube has its own circular, 6.4 mm thick window made of ultra-high molecular weight polyethlene with an expanded Teflon AR coating. The PA1 and PA2 windows are 32 cm in diameter and the PA3 window is 34 cm in diameter. Although thinner windows would have reduced in-band loading, the increased deformation would have interfered with the blocking filters immediately behind them (Figure 4). There are IR blocking filters (Tucker & Ade 2006) at 300 K, 40 K, and 4 K that reflect high-frequency out-of-band radiation to reduce the optical load, in particular, on the poorly thermally conducting LPE filters. These LPE capacitive mesh filters (Ade et al. 2006) are used at 40 K, 4 K, 1 K, and 100 mK to limit loading on successive stages. Filter sets with a range of cutoff frequencies allow suppression of out-of-band leaks from individual filters. For PA1/2, these LPE filters are also used to define the upper edge of the band. The lower edge of the PA1/2 band is set by a waveguide cutoff at the end of each feedhorn (Section 5.1). The PA3 bands are set by on-chip filters (Section 5.2).

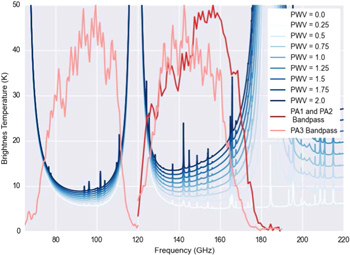

Each filter's frequency response at room temperature was measured with a Fourier transform spectrometer (FTS). After the filters were installed in the receiver, additional FTS measurements were made on the fully cooled system before shipping to the site, as were tests with thick-grill filters (e.g., Timusk & Richards 1981) to check for high-frequency leaks. A final set of FTS measurements was performed after the receiver was installed on the telescope so that bandpasses could be taken in the same configuration as science data acquisition. These on-site measurements were made using a Martin–Puplett-type interferometer operating in a step-and-integrate mode. The bandpasses, which were corrected for the transmission of the FTS coupling optics and a source blackbody spectrum, are shown in Figure 6. These spectra represent an average of 21 detectors for PA1, 84 detectors for PA2, 18 detectors for PA3 97 GHz, and 28 detectors for PA3 148 GHz.

Zoom In Zoom Out Reset image size

Using each array's measured bandpass, we follow the method of Page et al. (2003) for calculating the effective central frequency for broadband sources, as well as the CMB and SZ effect. The effect of the varying source spectra on the band center is to shift it slightly. The results are given in Table 1.

Table 1.  Effective Central Frequencies for Broadband Compact and Diffuse Sources

Array	PA1	PA2	PA3 (lower)	PA3 (upper)
Effective bandwidth	51.2 ± 2.1	51.1 ± 1.9	38.4 ± 1.9	41.1 ± 1.6
Effective band centers:	Compact Sources
Synchrotron	143.9 ± 1.9	144.2 ± 1.9	91.0 ± 1.1	143.1 ± 1.6
Free–free	144.7 ± 1.9	145.0 ± 1.9	91.8 ± 1.1	143.7 ± 1.6
Rayleigh–Jeans	147.7 ± 1.9	148.0 ± 1.9	94.6 ± 1.1	145.6 ± 1.6
Dusty source	150.0 ± 1.9	150.3 ± 1.9	96.7 ± 1.1	147.2 ± 1.6
Effective band centers:	Diffuse Sources
Synchrotron	145.3 ± 1.9	145.6 ± 1.9	92.4 ± 1.1	144.1 ± 1.6
Free–free	146.1 ± 1.9	146.4 ± 1.9	93.2 ± 1.1	144.6 ± 1.6
Rayleigh–Jeans	149.1 ± 1.9	149.4 ± 1.9	95.9 ± 1.1	146.6 ± 1.6
Dusty source	151.4 ± 1.9	151.7 ± 1.9	97.9 ± 1.1	148.1 ± 1.6
CMB	148.9 ± 1.9	149.1 ± 1.9	97.1 ± 1.1	146.6 ± 1.6
SZ effect	145.0 ± 1.9	145.3 ± 1.9	94.1 ± 1.1	143.7 ± 1.6
Conversion factors
δTCMB/δTRJ	1.72 ± 0.03	1.72 ± 0.03	1.27 ± 0.01	1.69 ± 0.02
δW/δTRJ (pW K−1)	1.41 ± 0.06	1.41 ± 0.06	1.05 ± 0.06	1.13 ± 0.04
${{\rm{\Gamma }}}_{\mathrm{RJ}}(\mu {\rm{W}}\,{\mathrm{Jy}}^{-1})$	7640 ± 260	8160 ± 240	6160 ± 250	5740 ± 270
${{\rm{\Gamma }}}_{\mathrm{CMB}}(\mu {\rm{W}}\,{\mathrm{Jy}}^{-1})$	13160 ± 440	14070 ± 410	7820 ± 310	9720 ± 450
Beam solid angles (nsr)	192 ± 4	179 ± 3	560 ± 19	264 ± 11

Note. The values are obtained by averaging over individual detectors and are based on the measured response of the receiver on the telescope. The uncertainties are equal to the standard deviation of the measured detectors. The measurement resolution of the FTS was ∼0.8 GHz and has not been deconvolved. Assumed spectral indices: synchrotron emission (α = −0.7), free–free emission (α = −0.1), Rayleigh–Jeans emission (α = 2.0), and dusty source emission (α = 3.7). The bandwidth uncertainty for PA1 and PA3 (90) is higher than the central frequency uncertainty because a couple of detectors in each of these arrays were measured to have significantly different bandwidths (wider in the case of PA1 and narrower in the case of PA3 90) than the mean.

Download table as:  ASCIITypeset image

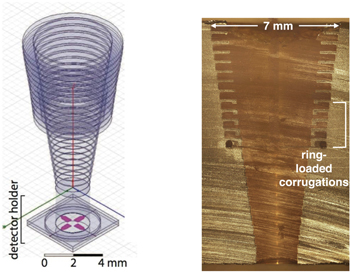

The feedhorns impedance-match radiation from free space to the detector wafers and their dimensions are optimized for a suitable bandwidth (Britton et al. 2010; Nibarger et al. 2012). The feedhorn arrays are assembled from stacks of silicon wafers with micro-machined circular apertures that correspond to individual corrugations (Figure 7). The individual silicon wafer platelets are etched, RF sputter coated with a Ti/Cu layer on both sides, stacked, aligned, and finally copper and gold electroplated to form a close-packed feedhorn array. This approach preserves the advantages of corrugated feedhorns such as low sidelobes, low cross-polarization, and wide-band performance, while reducing the difficulty of building such a large array using traditional techniques like direct machining or electroforming individual metal feeds. While similar arrays can be made from metal platelets, difficulties associated with weight, thermal mass, and differential thermal contraction are avoided with the silicon platelet array concept. Furthermore, tolerances achievable with optical lithography and silicon micro-machining make for extremely good array uniformity. The feedhorn profiles for all three arrays contain sections to define the low-frequency cutoffs of the detector bandpasses. The wider band of PA3 motivated a section of ring-loaded platelets (Takeichi et al. 1971) for that array (see Figure 7 and McMahon et al. 2012).

Zoom In Zoom Out Reset image size

Behind the feedhorns, radiation is coupled onto the polarimeters via planar orthomode transducers (OMT). The detectors are fabricated on monolithic three-inch silicon wafers in two different varieties: a hexagonal ("hex") wafer and a semi-hexagonal ("semihex") wafer. Each hex wafer has 127 pixels in the 148 GHz design and 61 pixels in the dichroic design, while the semihexes have 47 and 24 pixels, respectively. Each hex and semihex section is actually composed of four silicon wafers: a top, waveguide interface wafer, an OMT and detector wafer, and a two-piece quarter-wave backshort wafer. A full ACTPol array is assembled from three hex wafers and three semihex wafers.

Changes in radiation power are detected using superconducting TES bolometers (Lee et al. 1996; Irwin & Hilton 2005). When a TES is appropriately voltage biased, negative electrothermal feedback maintains it at the transition temperature, T_c, under a wide range of observing conditions. Its steep resistance-versus-temperature curve transduces temperature fluctuations into current fluctuations, which are readout by the use of SQUID amplifiers using a time-domain multiplexing (TDM) architecture (Reintsema et al. 2003) and room temperature electronics (Battistelli et al. 2008).

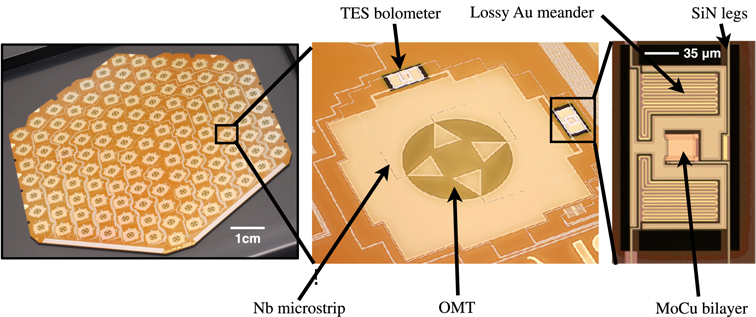

Photographs of a hex wafer, an ACTPol pixel, and a TES bolometer for the 148 GHz band are shown in Figure 8. Opposing pairs of OMT antenna probes separate the orthogonal polarization signals. The signals travel through a coplanar waveguide to microstrip transition, which is impedance-matched to reduce loss, to Nb microstrip lines, where they exit. On a PA3 dichroic pixel, diplexers comprised of two separate five pole resonant stub bandpass filters separate the radiation into 75–110 GHz and 125–170 GHz pass-bands. The signals from opposite OMT probes within a single sub-band are then combined, using a hybrid tee to reject high order modes, and the desired signal is routed to a TES island bolometer. Each PA3 pixel has four bolometers for the two linear polarization signals at each frequency. Details about the pixel design can be found in Datta et al. (2014). We define the detector optical efficiency η as the ratio of the power detected by the bolometer's TES to the optical power incident on the OMT. Both signal reflections and signal loss can cause η < 1. We originally projected η ≤ 0.76 and η ≤ 0.66 for the 97 and 148 GHz bands, respectively (Datta et al. 2014). Table 2 shows median measured values for the PA3 wafers, indicating the achieved dielectric loss tangents were slightly better than the conservative projections.

Zoom In Zoom Out Reset image size

Table 2.  The Measured Average ACTPol Detector Parameter Values by Wafer

Array	Wafer	Type	Tc (mK)	Psat (pW)	G (pW K−1)	${\eta }_{\det }$ (%)
PA1	W10	H	143 ± 5	8 ± 2	226 ± 30	59 ± 5
	W09	H	143 ± 5	9 ± 2	225 ± 24	61 ± 8
	W08	H	146 ± 6	7 ± 2	173 ± 33	62 ± 7
	SH1A	SH	158 ± 5	14 ± 2	326 ± 25	47 ± 14
	SH2A	SH	156 ± 6	14 ± 2	327 ± 24	18 ± 12
	SH2B	SH	151 ± 4	12 ± 1	303 ± 19	21 ± 12
PA2	FHC3	H	186 ± 5	10 ± 1	191 ± 16	60 ± 3
	FHC1	H	199 ± 5	16 ± 2	276 ± 48	65 ± 5
	FH6	H	142 ± 7	14 ± 4	469 ± 111	62 ± 2
	SH3B	SH	135 ± 8	9 ± 2	259 ± 55	51 ± 2
	SH4A	SH	150 ± 11	12 ± 3	320 ± 43	51 ± 8
	SH4B	SH	129 ± 8	15 ± 5	436 ± 138	51 ± 2
PA3	FH2	HA	162 ± 2	11 ± 1	297 ± 13	83 ± 4
		HB	161 ± 2	12 ± 1	318 ± 17	88 ± 2
	FH3	HA	160 ± 2	12 ± 1	314 ± 16	73 ± 6
		HB	157 ± 2	12 ± 1	333 ± 16	75 ± 7
	FH4	HA	152 ± 2	10 ± 1	293 ± 15	47 ± 4
		HB	150 ± 2	10 ± 1	302 ± 15	37 ± 7
	SH1A	SHA	148 ± 1	8 ± 1	240 ± 10	71 ± 3
		SHB	146 ± 2	8 ± 1	247 ± 13	79 ± 2
	SH1B	SHA	152 ± 2	10 ± 1	249 ± 13	70 ± 1
		SHB	149 ± 1	9 ± 1	257 ± 7	78 ± 2
	SH8B	SHA	170 ± 1	13 ± 1	314 ± 11	59 ± 4
		SHB	169 ± 1	14 ± 2	339 ± 10	71 ± 4

Note. The "Wafer" column gives unique identifiers related to the fabrication generation. The "Type" column distinguishes hex (H) and semihex (SH) wafers; for PA3, the additional designator A (B) distinguishes the 97 GHz (148 GHz) devices. We tabulate the mean critical temperatures (T_c); the mean bias powers to bring the detectors to 90% of their normal resistances when the bath temperature is 80 mK in the absence of significant optical loading (P_sat); the mean thermal conductances from the detector islands to the bath (G); and the mean detector efficiencies (η_det). For each device, we estimate the efficiency as the fraction of the optical power incident on the OMT, which is detected by the TES. Thus the efficiency accounts for losses due to absorption and reflection in the OMT and microstrip on the pixel. For each quantity, the error listed is the standard deviation of the distribution of devices for that wafer (or wafer/frequency subset for PA3). These parameters are derived from a combination of measurements in the laboratory and on the telescope. Grace (2015) contains more detail on PA1/PA2 parameters. For PA3 parameters, we refer the reader to Ho et al. (2016), Pappas (2016), and Datta et al. (2016)

Download table as:  ASCIITypeset image

For all three arrays, the Nb microstrip lines terminate at a pair of TES islands, where the power is deposited as heat through lossy gold meanders. Each island is connected to the bulk silicon through four SiN legs of length 61 μm and widths that range from 14 to 53 μm, depending on the wafer. These legs carry the TES bias/CMB signal lines onto the island and determine the thermal conductivity G to the thermal bath. The superconducting element of the ACTPol TES design is a MoCu "bilayer" with a T_c tuned to approximately 150 mK through the choice of the molybdenum and copper geometry and thickness. In the design of the TES, the choice of T_c and G represents a balance between minimizing the thermal noise and increasing the maximum operational optical loading power, P_sat. To increase the stability of the TES through increased heat capacity to slow the detector response, a region of PdAu is coupled to the TES bilayer. A summary of the detector characteristics and parameter measurements is shown in Table 2.

The response of the ACTPol detectors to a delta function signal diminishes with time due to the electrothermal time constant, τ, of the TES architecture. The median time constants for the three arrays are 1.9 ms, 1.8 ms, and 1.3 ms. With a scan speed of 1.5 deg s⁻¹, these values are equivalent to 3 dB points at multipoles ℓ between roughly 30,000 and 40,000. The time constants are loading dependent. We find that ${f}_{3\mathrm{dB}}=1/2\pi \tau$ typically varies by less than 20 Hz pW⁻¹.

Median array sensitivities based on detector noise power spectra are ∼23 μK $\sqrt{s}$ for PA1, ∼13 μK $\sqrt{s}$ for PA2, ∼14 μK $\sqrt{s}$ for PA 3 (97 GHz), and ∼20 μK $\sqrt{s}$ for PA3 (148 GHz). These sensitivity estimates are for PWV/sin(alt) = 1 mm (because the detectors are photon-noise limited, their sensitivities are dependent on the level of optical loading), and represent the array white noise level, evaluated near 20 Hz (which corresponds to angular scales of about 3 arcmin). The detector noise spectra are typically flat from approximately 100 Hz down to where the atmospheric contamination begins, between 1 and 10 Hz. These noise equivalent temperature measurements are $\sqrt{2}$ higher than preliminary estimates in Ho et al. (2016) and Datta et al. (2016) due to a coding error (which did not affect noise equivalent power estimates). The time streams are calibrated using observations of Uranus and the Uranus brightness temperature model given in Hasselfield et al. (2013). The error in this calibration is of the order of 2%.

The TDM readout scheme employs three stages of SQUID amplification. The multiplexing of the readout has the advantage of reducing the wiring requirements to limit the thermal load on the cold stage. The current through each TES couples to the input coil of a corresponding SQUID amplifier, called the first-stage SQUID (SQ1). A set of 32 SQ1s are coupled to one second stage SQUID (SQ2) through a summing coil. Each SQ2 and its corresponding SQ1s are housed on a multiplexing chip ("MUX11c"). The multiplexing readout is achieved through rapid sequential biasing of each of these 32 SQUIDs. The final stage of amplification is accomplished by a set of SQUID series arrays (SA). Twisted pair NbTi cables carry the SQ1, SQ2, and detector lines from the five SA boards housed on the 1 K stage to nine other printed circuit boards (PCBs) on the 100 mK stage, which hold the multiplexing and other readout chips. Each detector is voltage biased onto its transition using an ∼180 μΩ shunt resistor housed on the interface chip, which also contains a 600 nH "Nyquist" inductor designed to band limit the response.

The detector bias lines are carried from the readout PCBs onto the detector wafers through flexible circuitry consisting of a Kapton base and superconducting aluminum traces connected on both ends by aluminum wire-bonds. Both PA1 and PA2 as well as the hex wafers in PA3 are assembled with two layers of 200 μm pitch flexible circuitry made by Tech-Etch.²⁷ For the PA3 semihexes, single-layer, 100 μm pitch flex fabricated by the ACT collaboration is used (Pappas 2015). The biasing and multiplexing are handled by the Multi-Channel Electronics (MCE) crate (Battistelli et al. 2008; Hasselfield 2013). From the MCE box, a set of five 100-pin cables carry the bias and readout lines for the SQUIDs and detectors to the SA boards. The multiplexing and sampling rates are discussed in Section 7.

The total achieved readout yield for each array, where the yield is based on detectors with functional IV curves, is 67% for PA1, 77% for PA2, and 83% for PA3. The number of detectors used for CMB analysis is typically somewhat less than this (e.g., about 500 detectors for PA1), depending on observing conditions and the number of detectors that can be successfully biased. The fabrication yield of the detector wafers was high, with many wafers having perfect physical yield of the bolometers. Most detector loss originated from problematic SQUID biasing and readout lines, each of which corresponds to 32 TESes, and individual detector opens and shorts in the flexible circuitry. Through improvements in assembly protocols, higher yield was achieved with each successive array. Figure 9 shows part of the readout electronics architecture as well as a fully assembled array package.

Zoom In Zoom Out Reset image size

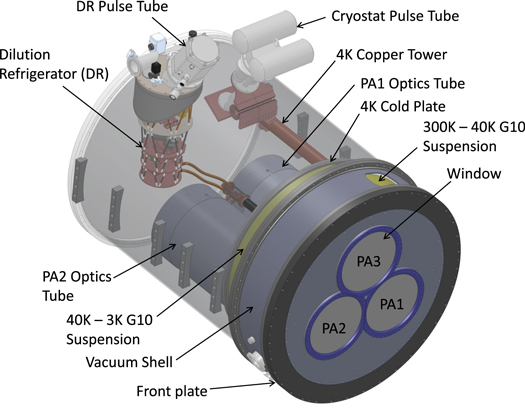

The remote site location makes the use of non-recycled liquid cryogens both difficult and expensive. Thus, every effort was made to include closed-cycle cooling systems wherever possible. A single Cryomech²⁹ PT410 pulse tube refrigerator is responsible for cooling the optics and cryostat structures attached to the 40 K and 4 K stages (Figure 11). These include the 40 K and 4 K cold plates, radiation shields, 40 K filters, and the 4 K components (first lens, baffles, filters) contained within the upper halves of all three optics tubes (Section 6.2). To minimize vibrations from the pulse tubes and scan turnarounds, acoustically deadened copper braid and flexible copper sheets are used to attach the PT410 cold stages to the rest of the internal cryostat structures (Figure 10). The receiver is located near the the telescope azimuthal axis, which also reduces scan-induced vibrations.

Zoom In Zoom Out Reset image size

All remaining components are cooled below 4 K using a pulse tube (Cryomech PT407)—backed custom ³He–⁴He dilution refrigerator (DR; Shvarts et al. 2014) manufactured by Janis Research Corporation.³⁰ The 1 K stage or "still" of the DR is responsible for cooling the back end of the optics tubes: the Lyot stop, the second and third lenses, and filters. The 100 mK stage or "mixing chamber" of the DR sets the bath temperature for all three detector arrays and can continuously supply over 100 μW of cooling power at 100 mK, making the DR an excellent choice when compared to more conventional 100 mK adiabatic demagnetization refrigerators due to the latter's limited cooling power. The DR's lower base temperature (thereby improved detector sensitivity) and continuous run-time also out-perform the ³He adsorption fridges used in the MBAC cryostat.

Cooling the cryostat to base temperature typically takes 14 days with all three sets of optics installed. This is due in large part to the considerable thermal mass contained within its optical components, focal-plane arrays, and many low-temperature thermal interfaces. The vast majority of the cool-down (>13 days) is the time required for all components to reach the base temperature of the pulse tube stages. During this process, the 1 K and 100 mK components are connected to the 4 K stage of the DR pulse tube via a mechanical heat switch. Once the pulse tube base temperatures are reached, the heat switch is disengaged and the ³He–⁴He mixture is allowed to condense while being circulated within the DR insert to complete the cool-down. An additional four to five hours are needed for the DR mixing chamber to drop below 100 mK once this final step has been initiated. Throughout the cool-down, as well as during normal operations, the DR is monitored via an ethernet link connected to its gas-handling system computer inside the receiver cabin of the telescope.

The lowest temperature reached by each cryogenic stage depends on a number of operational and environmental factors, including exterior temperature, telescope elevation, scanning motion, and the detector readout electronics. Table 3 lists the measured base temperatures and estimated thermal loading for each cryogenic stage during optimal cooling conditions—note that the temperature of the coldest stage (the DR mixing chamber) may be up to 13 mK warmer during typical observing operations (telescope in motion and detector readout powered on). Since a lower bath temperature results in higher detector saturation powers (and thus a larger dynamic range over atmospheric loading conditions (see Section 5), gold-plated high-purity (99.999%) annealed copper links were used to make thermal connections between the DR and the focal-plane arrays to minimize temperature gradients. During observations, the typical array temperature with all three sets of optics installed ranged from 100 to 115 mK.

Each of the three sets of optics is contained in a cylindrical optics tube. To minimize weight, aluminum was generally used to mount optical elements between 300 and 1 K. For 100 mK assemblies, where conductivity is critical and where aluminum is superconducting (resulting in reduced thermal conductivity), oxygen-free high-conductivity copper was generally used. Another reason for using mostly copper below ≈1 K is potential problems with magnetic flux expelled by superconducting aluminum alloys, which is problematic for the SQUIDs (Section 6.3).

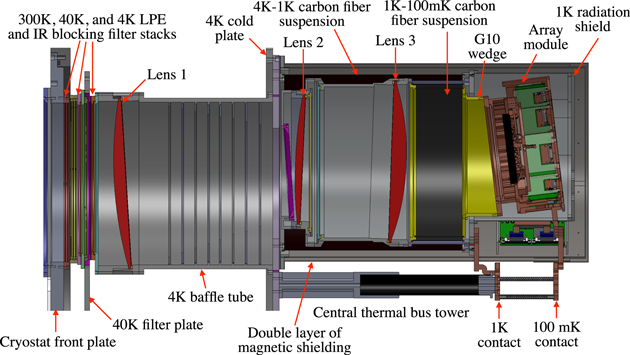

The three optics tube assemblies are of similar design, yet self-contained to allow each one to be deployed individually. A cross-section of the PA3 optics tube is shown in Figure 11. All lenses and LPE filters are clamped with a spiral beryllium copper spring around the perimeter of one side of each element to accommodate differential thermal contraction and to provide a uniform clamping force against the brittle silicon. The spring is a commercial³¹ product designed primarily for shielding from electromagnetic inteference. Most of the cylindrical structures comprising each optics tube are mounted perpendicular to the cold plates. Individual lens and array tilts were achieved through custom angled mounts that hold each component at the proper angle with respect to each optics tube.

The first lens, nominally at 4 K, is supported from the 4 K cold plate via an aluminum tube, inside of which are machined steps that precisely locate baffles. The baffles are blackened with a mixture of 2850 FT Stycast, loaded with 5%–7% carbon lampblack by weight, so that the minimum thickness exceeds 1 mm and is textured. The Lyot stop, second and third lenses, and surrounding low-pass filters are all maintained near 1 K. To reduce the load on the DR, these structures are supported from the 4 K cold plate using a custom-made carbon fiber tube. Attached to this 1 K framework is a second, re-entrant carbon fiber suspension that is 0.6 mm thick for thermally isolating the 100 mK array package from the 1 K components.

The SQUID multiplexers and amplifiers, as well as the TESes themselves, are sensitive to changing magnetic fields and therefore require magnetic shielding from both Earth's field and AC fields associated with the telescope motion. To complement shielding around the SA modules and at the PCBs, additional magnetic shielding was provided for the collection of SQUIDS for each array by enclosing the lower half of each optics tube (Figure 11) with Amumetal 4 K³² (A4K). This is a proprietary material with a high nickel concentration and prepared with a heat treatment process to give it a high magnetic permeability at cryogenic temperatures. To achieve the maximum attenuation, the thickest available A4K (1.5 mm) was used. Each optics tube has two layers of shielding separated by approximately 6 mm since, given sufficient spacing, using additional layers approaches the limit of multiplicative increases in the field attenuation.

The receiver is supported and aligned by an aluminum frame that was designed to interface with the receiver cabin structure (Figure 2). Plain (sliding) phosphor bronze bearings support the receiver and allow it to be translated in three directions and rotated in two directions. The positions of the telescope optics and receiver are measured using a VSTARS photogrammetry system from Geodetic Systems Inc. (GSI).³³ Retroreflective targets are placed at the location of the alignment actuators on each panel of the primary and secondary reflectors as well as at fiducial points on the front surface of the cryostat. Several auxiliary targets are placed around the perimeter of each reflector and on the inner ground screen. The target 3D positions are solved for using GSI propriety software. After post-processing with in-house software and actuator adjustment, the reflector surfaces are aligned to better than 27 μm rms during nighttime observing and the reciever is positioned to within 1 mm of its optimal location.

Both science data and housekeeping data are recorded. The science data consist of detector output from the three arrays, with data from each written to a separate local acquisition computer. A housekeeping computer logs data on ambient and cryogenic temperatures, telescope encoders, and motors, etc. Due to the dusty environment and low atmospheric pressure, all of the hard drives at the telescope site are solid state. Data from each acquisition machine are transmitted via radio link to a RAID server at our base near San Pedro de Atacama, where they are merged together into a single data product. The data are ultimately archived in North America.

Data acquisition for ACTPol in the 2013 and 2014 seasons was largely the same as that of MBAC, so here we only summarize the acquisition and flow of data, and refer the reader to Swetz et al. (2011) for details. In the 2015 season some systems were modified, and we outline those in Section 7.3

The MCE bolometer readout has a raw sampling rate of 50 MHz. Using TDM, with a row-switching rate of 500 kHz and 33 row selects, an entire array of detectors is sampled at 15.15 kHz. The signal is then anti-alias filtered with a four-pole, low-pass, Butterworth design with a 120 Hz cutoff. The data are downsampled to 399 Hz before transmission by optical fiber to the data acquisition computer for recording to disk. Each detector array has its own MCE, readout by, and is recorded on its own computer. Synchronization of the MCEs is achieved by means of a "sync box" that provides a common clock for the 15.15 kHz sampling, as well as an integer "sync counter" that increments at the 399 Hz recording rate. The data for each MCE are tagged with the sync counter so that they can be merged downstream.

The same sync counter is used to synchronize the readout of the azimuth and elevation encoders with the bolometer channels. Our housekeeping data acquisition computer contains a custom-built PCI card with an on-board FPGA that receives the sync counter from the sync box via an RS485 connection (clock plus NRZ). Reception of a new sync word generates an interrupt on the PCI bus, which alerts a device driver to poll the azimuth and elevation encoders using a Heidenhain IK220 PCI card in the same computer. The driver then bundles the sync counter with the encoder readings and the absolute time—the latter is accurate to <1 ms due to a Meinberg GPS-169 PCI card disciplining the computer's system clock.

The ACT master control program (AMCP) is responsible for reading and overall control of all housekeeping. The sync box-disciplined output of the device driver described above provides AMCP with the master clock. Cryogenic temperatures are readout at 10.6 Hz using three National Instruments³⁴ USB-6218 DAQs; though this readout is asynchronous with the the sync box, we have measured that they are normally aligned to <100 ms (1 sample at 10 Hz), which is sufficient for our needs. Ambient temperatures of the telescope structure are read with a Sensoray³⁵ 2600 at 50 Hz, also asynchronously. The state of the motion control robot as well as its own housekeeping (such as motor temperatures and currents) are also acquired by AMCP. At the same time, ACMP dispatches commands to the motion robot that it receives from human operators or the automatic scheduler.

The four data sets from our acquisition computers—three MCE computers and one housekeeping computer—are copied via radio link to our base near San Pedro de Atacama, where they are merged together by means of the sync counter. The result is a single archive of data files, all sampled at 399 Hz (or integer factors thereof) and, for the encoder and bolometer data, acquired simultaneously to 5 μs precision. Having this merged data product means that mapmaking software need not search for disparate files and can work with fully-synchronized data.

The presence of new data files is registered in a MySQL database, and a series of software daemons that communicate with this database copies files to portable hard disks for transport to Santiago and North America. The software tracks all file copies and ensures that redundant copies exist before space is freedom-site computers. This is true for merged files as well as raw, unmerged files, which we keep for full redundancy. One can also request that files be copied over the internet rather than by transport drives; our internet bandwidth is too small, however, to forego the use of transport drives.

Modifications to our housekeeping readout were implemented before the 2015 season of observations to prepare for the installation of ambient-temperature half-waveplates (HWP), with the goal of significantly reducing atmosheric and instrument 1/f noise (e.g., Kusaka et al. 2014).

The HWP encoders will be readout by a DNA-PPC8 system, which consists of a CPU interfaced to a lower data acquisition layer. The latter is customizable by installing various boards provided by the same vendor³⁶ in the unit's six available slots. Reading our high-speed serial sync data would be challenging with this device, so we have built a new module for the sync box that translates the serial RS-485 sync counter to a parallel signal latching at the 399 Hz data acquisition rate. This parallel sync counter is read by a DNA-DIO-403 card in the DNA-PPC8 and any data acquired by the unit can be tagged with the sync counter.

We took advantage of our ability to interface the DNA-PPC8 with our sync box to update our azimuth and encoder readout as well, as the interrupt-generating scheme described above (Section 7.2) was quite demanding on our housekeeping computer, causing various complications. The new readout uses a Heidenhain EIB 741 unit, externally triggered at 399 Hz by the DNA-PPC8 over RS485 whenever a new sync counter is received. The azimuth and elevation encoder positions are then read from the EIB 741 unit over ethernet by AMCP. A trigger counter provided by the EIB 741 along with the encoder readings makes it straightforward to associate the latter with the appropriate sync counter, thereby ensuring synchronization of all the encoders—azimuth, elevation, and HWP—with our bolometer readings.

The telescope beams are characterized with observations of planets. Saturn is used to align and focus the secondary reflector at the start of each season, but observations of Uranus are ultimately used for beam characterization because its brightness is low enough to not saturate the detectors.

A single planet observation is achieved by scanning the telescope back and forth in azimuth, at fixed elevation, while the planet rises or sets through an array's FOV. The resulting time-ordered data are reduced to a single map of the celestial sky, centered on the planet, for each detector array and frequency band. This mapping process relies on knowing the relative pointings of the detectors on the sky, and on an accurate calibration of each detector's response to the source.

The detector positions are determined from Saturn and Uranus observations by fitting a model for the source to the time-stream data directly. A single average pointing template is computed for each season and array, and used for all subsequent planet mapping. The relative positions of the detectors are constrained at roughly the arcsecond level, and thus the pointing template uncertainty contributes negligibly to beam degradation.

The detector calibrations are determined independently for each mapped observation by comparing the amplitude of each detector's response to the common mode from atmospheric emission.

Each planet map provides a measure of the telescope's "instantaneous" beam, averaged over all responsive detectors in each array and band. The average instantaneous beams are shown in Figure 12. Beam properties, which are derived using an elliptical cone model, are provided in Table 4. The primary cause of the ellipticity in PA3 is field distortion, as the optics tubes span a larger FOV than that for which the telescope was originally designed. The effective point-spread function of the telescope in the CMB survey maps differs from the instantaneous beam primarily due to the impact of pointing variance,³⁷  which acts as a low-pass spatial filter, and due to the way in which sky rotation symmetrizes the beam by stacking up observations at a variety of parallactic angles. For the interpretation of CMB survey maps, the beam's harmonic transform and its covariance are determined following the procedure described in Hasselfield et al. (2013).

Zoom In Zoom Out Reset image size

The ability to separate polarized intensity into E and B components depends upon how accurately detector polarization angles are known. For each hex and semihex wafer, a feedhorn couples to an OMT pair having one of two possible orientations, which is set by lithography during fabrication. When this is combined with both the orientation of the semi-hex and hex wafers within an individual array as well as the orientation of each array as a whole into the cryostat, a roughly equal distribution of detector angles, covering every 15°, is produced. Figure 13 shows these resulting detector polarization angles as seen on the sky.

Zoom In Zoom Out Reset image size

Apart from the physical OMT orientations, however, there is also a polarization rotation introduced by the ACTPol optical chain as seen on the sky. The optics-induced rotations, as well as the detailed mapping from the focal-plane position to projected angle on the sky, are determined using a polarization-sensitive ray trace through a model of the telescope in the optical design software CODE V.³⁸ Given a point on the sky, the software calculates the polarization state across the entrance pupil diameter. This polarization state, averaged across the pupil and propagated to the focal plane, produces the polarization output for a single point on the focal plane. Given a perfectly polarized input state of known angle, the difference between the output polarization state and the input state results in the polarization rotation. The resulting polarization rotation output is produced at 25 points on the focal plane for each of the three ACTPol arrays. This rotation on the focal plane is then fit to a simple 2D quadratic model, which is in turn used to produce the polarization angle rotation at the location of each feedhorn in all three arrays. The optics-induced rotations have a range of approximately 3°. While this is too small to be seen in Figure 13, it is too large to be ignored in the anaylsis.

Thus far, the measured polarization angles from the Crab Nebula (see, for example, Farese et al. 2004) and minimizing the EB spectrum (Keating et al. 2013; Naess et al. 2014) are consistent with the calculated polarization angles based on the optics design and detector layout. Further analyses will be presented in future papers, e.g., Koopman et al. (2016).
