Bi₂Te_3−xSe_x series studied by resistivity and thermopower

Bi₂Te_3−xSe_x are a family of narrow-band semiconductors, well known since the 1950s for their exceptional thermoelectric properties [1]. Bi₂Te₃ has the highest known thermoelectric figure of merit zT at room temperature, and is widely used in room-temperature thermoelectric applications. Recently, bismuth chalcogenides were rediscovered within the novel context of topological insulators [2,3]. The surface states in Bi₂Te_3−xSe_x are simple since only one Dirac cone crosses the band gap [4,5]. However, in spite of a reasonably large band gap $(200\text{-}300\ \text{meV})$, bulk conductivity of known bismuth chalcogenides is relatively high and hinders the observation of topological surface states, even in the most compensated compound Bi₂Te₂Se [6,7]. Throughout this series, the Fermi level is found either within the conduction or valence band. In this paper we study the detailed temperature dependence of the resistivity $\rho(T)$ and thermoelectric power S(T) of bismuth chalcogenides to clarify the relation between the composition and position of the Fermi level, and to address the possible role of the surface states in the thermoelectricity of these compounds. We investigate nine different compositions of the Bi₂Te_3−xSe_x series, where the Se content is tuned from x = 0 to 3. The thermopower S(T) may be semi-quantitatively explained by the standard extrinsic semiconductor model [1]. S(T) shows that tuning the Te/Se content leads to a steady shift of the chemical potential, from the valence band in the p-type Bi₂Te₃, to the conduction band in the n-type Bi₂Se₃. The highest value of the thermopower is found at $x=0.9$ and it corresponds to the lowest Fermi temperature. For this composition, two electronic contributions are needed to describe both $\rho(T)$ and S(T) at low temperatures. While this is consistent with the effect of topological surface states, it is more likely that the charged defects in the material lead to nearly resonant hopping and thus short cut the conduction at low temperatures.

Single crystals of Bi₂Te_3−xSe_x were grown by the floating zone method from the stoichiometric ratio of metallic bismuth and chalcogenide elements. The unit cell of a Bi₂Te_3−xSe_x compound consists of quintuple Te/Se–Bi–Te/Se–Bi–Te/Se layers stacked along the c-axis direction [8,9]. The quintuple layers are bound by weak van der Waals interaction. We investigated nine different compositions, given by the Se content $x=0,0.6,0.9,0.95,1,1.3,1.5,2$ and 3. Crystals were cleaved and cut into thin bars of approximately $1.5 \times 0.5 \times 0.02\ \text{mm}^3$. For the resistivity measurements of the $x=0.9$ composition, samples were cleaved to seven different thicknesses, from $4\ \mu \text{m}$ to $140\ \mu \text{m}$. The resistivity was measured using a standard four-probe technique. Thermopower was determined simultaneously using a dc method, where the sample was fixed to a ceramic surface with a small heater attached next to it, and the thermal gradient was determined using a chromel-constantan differential thermocouple. The bulk band gap was determined through transmission and reflection measurements on cleaved thin flakes, using a Bruker Hyperion microscope, by following the energy of the onset of the Fabry-Perot interferences, similar to the previous high-pressure studies of bismuth chalcogenides [7,10,11].

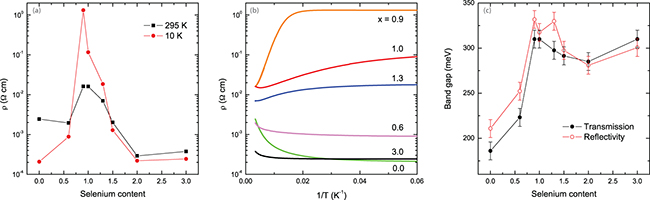

The behavior of the resistivity throughout the series is shown in fig. 1(a) at room temperature and at 10 K. At room temperature a pronounced maximum in ρ occurs for $x\sim1$. At low temperature it becomes clear that the resistivity is the largest for $x=0.9$. A more detailed temperature dependence of the resistivity is shown in fig. 1(b) in an Arrhenius plot, for several different compositions x. While most samples exhibit a weakly metallic resistivity, we observe an activated behavior for $x=0.9,0.95,1$ and 1.3, in the x range where $\rho(x)$ has maximum value; this is in agreement with previous works [12,13]. The activation energies are small and range from $\sim 4.5\ \text{meV}\ (50\ \text{K})$ for $x=0.95, 1$ and 1.3, to $\sim 47\ \text{meV}\ (540\ \text{K})$ for $x=0.9$.

Zoom In Zoom Out Reset image size

The stoichiometry dependence of the bulk band gap is shown in fig. 1(c). It spans from approximately 200 meV in Bi₂Te₃ to 300 meV in Bi₂Se₃, reaching a maximum of 325 meV in Bi₂Te_2.1Se_0.9. It is interesting to note that the maximum band gap takes place for the same stoichiometry $(x\sim 1)$ for which resistivity is maximum. However, even when the resistivity is activated, the transport gap (activation energy) is much smaller than the band gap [14]. While the band gap is determined by the band structure, the transport gap is linked to the presence of charged point defects. When the composition is tuned from Bi₂Te₃ to Bi₂Se₃, one passes from a system with excess Te towards a Se-deficient compound, i.e. from a hole-rich to an electron-rich system. Around the composition x = 1, the Se/Te sublattice is expected to be ordered [12]. In addition, the native p- and n-type defects compensate, decreasing conductivity [15]. Therefore, around x = 1 the bulk conductivity is minimum and this composition corresponds to an almost complete compensation of donor and acceptor impurities.

The $x=0.9$ sample is the most compensated sample in which the resistivity and the activation energy are the highest. The high-temperature resistivity is well described by the activated behavior (see fig. 1(b)). According to Skinner et al. [14] the low-temperature resistivity should be described by variable range hopping (VRH). However, at low temperatures we do not see any evidence of VRH. Instead, below a temperature T_X a plateau in the resistivity sets in (similarly to the previous work [6,12,13]) and $\rho(T)$ starts to saturate or even weakly decrease, as seen in fig. 1(b), suggesting that another conduction channel becomes dominant at low temperatures. The position of this low-temperature plateau proves to be strongly dependent on the activation energy. To illustrate this, fig. 2 shows $\rho(T)$ determined for seven $x=0.9$ samples with different dimensions, all prepared from the same starting crystal. To facilitate the comparison, the resistivity curves in fig. 2 are normalized to 1 at 300 K.

Zoom In Zoom Out Reset image size

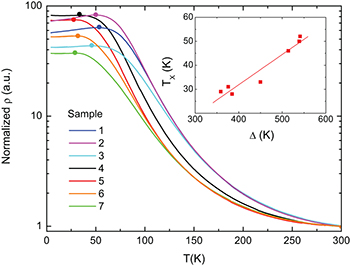

The activation energy Δ ranges from 360 to 540 K, which shows that there are differences in the composition even within the same ingot [15]. In the samples with the lowest activation energy, $\Delta<400\ \text{K}$, the plateau onset is at $T_X\sim30\ \text{K}$. For the samples with the highest activation energy, $\Delta \approx 540\ \text{K}$, the plateau starts at $T_X \sim 50\ \text{K}$. If we compare the resistivity of the samples with similar activation energy Δ (for example, samples 1, 2 and 3 in fig. 2), at high temperatures the curves lie on top of each other. However, the resistivity below T_X strongly varies. This may suggest conduction through metallic (topological) surface states [6,16], where the surface states would dominate the conductivity once the bulk resistance becomes sufficiently high. In this case, temperature T_X should be dependent on the sample geometry. However, a similar resistivity plateau may result from an additional bulk contribution, for example conduction through a weak impurity band in the vicinity of the Fermi level.

Suppose that the bulk conductivity is activated, $\sigma_B=\sigma_0 \exp (-\Delta/T)$. The additional contribution $\sigma_X$ of unknown origin becomes evident at low temperatures and one may ignore its temperature dependence. The total conductivity is then $\sigma_{\textit{tot}}=\sigma_0 \exp (-\Delta/T) + \sigma_X$. At high temperatures the bulk conductivity dominates and the total conductivity is activated. At low temperatures the $\sigma_X$ component becomes important. If the conduction channel $\sigma_X$ is a bulk contribution like $\sigma_B$, then the geometry of the sample plays no role and the transition temperature will be proportional to the activation energy, $T_X = \Delta/\ln(\frac{\sigma_0} {\sigma_X})$. The inset in fig. 2 shows T_X plotted against Δ for the seven samples from the main panel. The relation is close to linear. Therefore, the low-temperature saturation or decrease in the resistivity is consistent with the formation of an impurity band [7,17].

We now come back to the question as to how the Fermi level position depends on the composition x. One way to follow the progression from p- to n-type conductor is from the thermopower. This is particularly simple in a situation where there is only one relevant electronic band. Figure 3(a) shows the dependence of the thermopower on the Se content, x, at several different temperatures. There is a very sharp sign change taking place between $x=0.95$ and $x=1.0$. For $x \geq 1$ the thermopower becomes negative, meaning that there is a transition from p-type to n-type conduction. This transition is illustrated by a cartoon within fig. 3(a).

Zoom In Zoom Out Reset image size

For thermoelectric applications, it is important to optimize the figure of merit zT. In applications that do not require maintaining a temperature gradient, the power factor $S^2/\rho$ should be maximized. The power factor ranges between 10 to $50\ \mu \text{W/(K}^2 \text{cm})$ for the series of the samples we study here. These values are similar to those of Sokolov et al., and display a similar doping dependence [18]. A maximum power factor of $50\ \mu \text{W/(K}^2 \text{cm})$ takes place for x = 2, and a minimum $10\ \mu \text{W/(K}^2 \text{cm})$ occurs for x = 1 where both the thermopower and the resistivity are maximum.

Figure 3(b) shows a detailed temperature dependence of thermopower S(T) for nine different compositions x. All of the samples are either p- or n-type, and a clear progression can be seen from Bi₂Te₃ towards Bi₂Se₃. While this gradual change from p- to n-type conductor has been long known, our results also show a very detailed and systematic progression of the temperature dependence of thermopower. The only exception is the $x=0.9$ sample, which is p-type at high temperatures, and n-type below $\sim 50\ \text{K}$. Leaving the $x=0.9$ composition momentarily aside, let us focus on the temperature dependence of thermopower in the remaining eight compounds. The thermopower of a heavily doped semiconductor on the metallic side of the metal-insulator transition is given by [1]

$$\begin{equation} S=\pm \frac{k_B}{e}\left[\eta_F- \frac{(r+5/2)F_{r+3/2}(\eta_F)}{(r+3/2)F_{r+1/2} (\eta_F)}\right]. \end{equation} \tag{ 1 }$$

Here $\eta_F=E_F/(k_B T)$ is the reduced Fermi energy; the parameter r describes the energy dependence of the scattering time, and

$$\begin{equation} F_{n}=\int_0^\infty\text{d} \eta \frac{\eta^n}{1+ \exp \left(\eta -\eta_F \right)} \end{equation} \tag{ 2 }$$

is the Fermi integral. E_F is measured from the bottom of the conduction band for the n-type, or the top of the valence band in the case of a p-type semiconductor. To describe the energy dependence of the scattering time parameter, we take the standard value [1] $r=-0.5$ for acoustic phonon scattering and calculate S(T) assuming a set of temperature-independent values for E_F. For Bi₂Se₃, the carrier density n may be roughly estimated by comparing the resistivity data in fig. 1 to the results reported by Butch et al. [19], which gives a result of $n\sim 10^{18} \text{-}10^{19}\ \text{cm}^{-3}$.

Results for the calculated temperature dependence of the thermopower are shown in fig. 3(c) for $E_F/k_B$, ranging from 50 K to 900 K (corresponding to the E_F between 4.3 and 77.6 meV), in steps of 50 K. This ballpark for E_F seems to be in fair agreement with ARPES results from some members of the series. For example, Hor et al. [20] observed a Fermi level of 50 meV in Bi₂Se₃ and Chen et al. [21] saw $E_F\approx45\ \text{meV}$ in Bi₂Te₃. The measurements of quantum oscillations for Bi₂Se₃ show that the fundamental state of the system is metallic and that carrier density can be tuned by several orders of magnitude via controlling the stoichiometry [22]. When changing the carrier density from 10¹⁷ to $10^{18}\ \text{cm}^{-3}$, the Fermi temperature moves from 80 K to 1100 K. Köhler and Hartmann [23] showed that for different carrier densities in Bi₂Se₃ the energy of the Moss-Burnstein shift in the reflectivity is proportional to the Fermi energy. In the Bi₂Se₃ sample studied here, the Burnstein peak is at $\sim 0.38\ \text{eV}$, which gives $E_F \approx 100\ \text{meV}$. This is in good agreement with the approximate value of 900 K suggested for the Bi₂Se₃ sample by the calculated series in fig. 3(c).

The simple semiconductor model given by eq. (1) captures our experimental results quite well. The higher values of E_F lead to a thermopower almost linear in temperature, very similar to the one measured in Bi₂Te₃ and Bi₂Se₃. A smaller E_F leads to a thermopower with a distinct change in slope for $k_B T \sim E_F$. Such a shape of S(T) is similar to what we measure for $x\approx 1$. With this in mind, one might conclude from fig. 3(b) that samples with $x=0.6, 0.95$, and 1.0 all have $E_F\sim 4\ \text{meV}$. On the contrary, Fermi levels in pure Bi₂Te₃ and Bi₂Se₃ should be higher than room temperature since no clear change in slope is visible from our thermopower data.

While the temperature dependence of S is well captured by the above model, the absolute values of the calculated S are approximately twice smaller than the measured thermopower. This may be due to additional contributions to the thermopower not taken into account by the model, such as phonon drag, or because the parameter r is not simply −0.5 (which describes acoustic phonon scattering), but has a temperature and composition dependence [24,25]. Chen and Shklovskii [26] recently showed that a model of a strongly compensated semiconductor, with shallow and randomly positioned donors and acceptors, gives a good estimate of the absolute value of the thermopower for our most compensated samples, $400\ \mu \text{V/K}$.

The thermopower of Bi₂Te_2.1Se_0.9 has a temperature dependence which differs from the rest of the series. S(T) rises above $400\ \mu \text{V/K}$ at 100 K, and then precipitously drops below 100 K, changing its sign. This is the only composition for which the sample is p-type at high temperatures and n-type at low temperatures, suggesting that there is more than one kind of charge carriers. Similarly, it was shown [6,12] that the Hall coefficient of Bi₂Te₂Se deviates from the activated behavior below 100 K, and changes its sign from positive values at high temperatures to negative values at low temperatures. More recently, Shekar et al. [16] suggested that the saturation and metallic character of $\rho(T)$ below 30 K was linked to the presence of topological surface states. Among our samples, the $x=0.9$ sample also has the highest resistivity within the series, as shown in fig. 1(b), and one of the highest bulk band gaps $(\sim 325\ \text{meV})$. As in the case of resistivity, we show that this behavior of the thermopower is related to an additional conductivity contribution. If we suppose there are two parallel channels of conduction in the sample then the total thermopower is given by

$$\begin{equation} S=\frac{S_B \sigma_b+S_X \sigma_X}{\sigma_B+\sigma_X}. \end{equation} \tag{ 3 }$$

Here S_B is the bulk thermopower and S_X is the thermopower of the second conducting channel. For a non-degenerate semiconductor, $S_B \propto \frac{k_B}{e} \frac{E_g}{2 k_B T}$ where E_g is the energy gap [1]. $\sigma_B$ and $\sigma_X$ may be obtained by fitting the resistivity curve for the $x=0.9$ sample shown in fig. 1(a). For S_X we may suppose either a simple metallic temperature dependence, $S_X=AT$, where A is a constant, or a semiconducting behavior given by eq. (1). In both cases, for an appropriate choice of parameters, the total thermopower closely resembles the experimental curve for Bi₂Te_2.1Se_0.9, capturing the strong decrease of S(T) at 100 K and the sign change between 50 and 100 K as shown by the thick red line in fig. 3(c). The experimental S(T) curve for the $x=0.9$ sample agrees fairly well with the above simple calculation, thus confirming the presence of another conduction mechanism in the sample which dominates the resistivity and thermopower at low temperatures. While this may be due to the surface states, it is likely caused by resonant hopping through the impurity states.

To summarize, we have presented a systematic study of the composition and temperature dependence of thermopower within the bismuth chalcogenide Bi₂Te_3−xSe_x series. The maximum resistivity, thermopower, and bulk band gap occur for $x = 0.9$. For this composition, the Te/Se sublattice is presumably maximally ordered which reduces the defects in the crystal lattice [6,12]. Moreover, at this composition the strong competition between the native n- and p-type defects can lead to their maximal compensation, and decrease the bulk conductivity [15]. The thermopower at a given temperature can be tuned by changing the stoichiometry. Starting from the p-type Bi₂Te₃, thermopower is strongly enhanced when a part of the Te atoms is replaced with Se, and at the composition Bi₂Te₂Se the thermopower changes its sign. As the amount of Se is increased, the value of thermopower decreases. The temperature dependence of the thermopower may be semi-quantitatively described by a simple model for an extrinsic semiconductor. Here, the Fermi level E_F decreases from Bi₂Te₃ towards Bi₂Te₂.05Se₀.95, reaching a minimum of approximately 4 meV. When more Se is replaced for Te, the Fermi level E_F starts increasing again. Both the bulk band gap and the Fermi level can be tuned by controlling Se/Te stoichiometry. For $x=0.9$ we determine the largest absolute values of thermopower and resistivity. At this composition the low-temperature electronic transport is dominated by an additional conducting channel.

We would like to thank Kamran Behnia, Brian C. Sales and Nathaniel Miller for helpful advice and comments. Research was supported by the Swiss NSF through grant No. 200020-135085 and its NCCR MaNEP. AA acknowledges funding from Scholarship of Excellence of the University of Geneva.
