The role of shell evolution in shape coexistence

We start with a single-particle orbit, characterized by its angular momentum j, on top of a doubly closed shell (or core). Its single-particle energy is denoted as ${\epsilon }_{j}$. In the case of one nucleon + core system, if this nucleon is on the orbit j, ${\epsilon }_{j}$ consists of the kinetic energy and the effects of nuclear forces from all nucleons in the core. In the case of a one nucleon outside a stable closed-shell nucleus, the ${\epsilon }_{j}$ are well described by the standard shell-model structure. As the nucleus moves away from such a case with more neutrons (i.e., neutron-rich exotic nuclei), ${\epsilon }_{j}$ will change in general. A smooth A (= Z + N) dependence arises, but the change is gradual and minor. The kinetic-energy part changes very gradually as a function of A, and is assumed, in this article, to remain unchanged within the region of interest on the Segrè chart [10]. The ${\epsilon }_{j}$ can change, however, due to nuclear forces, as N (or Z) changes.

We show how to calculate this change. For this purpose, we first introduce the monopole component of a general two-body interaction $\hat{v}$ [11, 12, 13, 14]. The monopole matrix element is defined as

$$\begin{eqnarray}&&{v}_{m}(j,{j}^{\prime })=\displaystyle \frac{{\displaystyle \sum }_{\mu ,{\mu }^{\prime }}\langle j,\mu ,{j}^{\prime },{\mu }^{\prime }| \hat{v}| j,\mu ,{j}^{\prime },{\mu }^{\prime }\rangle }{{\displaystyle \sum }_{\mu ,{\mu }^{\prime }}1}\end{eqnarray} \tag{ 1 }$$

with j and ${j}^{\prime }$ shorthand notation for (n, l, j) of the orbit, μ and ${\mu }^{\prime }$ being their magnetic substates, respectively, and $\langle ...| \hat{v}| ...\rangle$ standing for the two-body matrix element. This expression is a general one, and $\hat{v}$ implies a general two-body interaction. The monopole matrix element is obtained, for a given pair of orbits j and ${j}^{\prime }$, as the average over all possible orientations of the two-particle states, $\mu \otimes {\mu }^{\prime }$. The denominator in equation (1) is the number of such two-particle states. This average property then becomes,

$$\begin{eqnarray}&&{v}_{m}(j,{j}^{\prime })=\displaystyle \frac{{\displaystyle \sum }_{J}(2J+1)\langle j,{j}^{\prime };J| \hat{v}| j,{j}^{\prime };J\rangle }{{\displaystyle \sum }_{J}(2J+1)},\end{eqnarray} \tag{ 2 }$$

where J denotes the angular momentum resulting from the angular momenta of the two orbits, as $\vec{J}=\vec{j}+\vec{{j}^{\prime }}$. The factor $(2J+1)$ is the degeneracy of the two-particle states having the same value of J. In the latter equation, some J values can be forbidden by the antisymmetrization, but this is not the case if only the proton-neutron monopole interaction is considered. From the monopole matrix element, one can derive the monopole component, ${\hat{v}}_{m}$, of the interaction $\hat{v}$, which can be called the monopole interaction.

The monopole interaction we discuss in the present contribution is limited, almost exclusively, to the one between a proton and a neutron. We then obtain

$$\begin{eqnarray}&&{\hat{v}}_{m}=\displaystyle \sum _{j,{j}^{\prime }}\;{v}_{m}(j,{j}^{\prime })\;{\hat{n}}_{j}\;{\hat{n}}_{{j}^{\prime }},\end{eqnarray} \tag{ 3 }$$

where the orbit j refers to a proton and ${j}^{\prime }$ to a neutron, or vice versa. The (total) monopole interaction, consisting of not only this proton–neutron interaction but also the proton–proton and the neutron–neutron interactions, is an important part of the original interaction $\hat{v}$. The remaining part is called the multipole interaction, in order to distinguish it from the monopole interaction. The multipole interaction is often expressed as ${\hat{v}}_{M}$, and it includes in particular the quadrupole interaction.

The most important effect of the monopole interaction is the change in the single-particle energy of the orbit j due to the occupancy of the orbit ${j}^{\prime }$. Calculating the expectation value of the operator ${\hat{n}}_{{j}^{\prime }}$ with respect to a many-body reference state, we obtain,

$$\begin{eqnarray}&&{\rm{\Delta }}{\epsilon }_{j}={v}_{m}(j,{j}^{\prime }){n}_{{j}^{\prime }},\end{eqnarray} \tag{ 4 }$$

where ${n}_{{j}^{\prime }}$ stands for the expectation value ${n}_{{j}^{\prime }}$ = $\langle {\hat{n}}_{{j}^{\prime }}\rangle$. This equation means that the single-particle energy of the orbit j is changed in proportion to ${n}_{{j}^{\prime }}$. This relation leads to a very amusing feature: the effects of the multipole interaction vanish if the shell (or orbit) ${j}^{\prime }$ is completely filled, whereas this effect of the monopole interaction not only remains finite but also maximal.

An interesting issue is related to the type of monopole interaction, with changing the nuclear forces. As an extreme case, if $\hat{v}$ is isotropic with infinite range, ${v}_{m}(j,{j}^{\prime })$ does not depends on j or ${j}^{\prime }$, being a constant. If $\hat{v}$ is an attractive force, ${v}_{m}(j,{j}^{\prime })$ takes a constant negative value. This implies that if more neutrons occupy the orbit ${j}^{\prime }$, all proton orbits j become more bound to the same extent. In other words, the proton shell is conserved but becomes more deeply bound.

On the other hand, if $\hat{v}$ is given by a δ-function with a strength parameter, ${v}_{m}(j,{j}^{\prime })$ becomes sensitive to the overlap between the wave function of the orbit j and that of the orbit ${j}^{\prime }$. This implies that if more neutrons occupy the orbit ${j}^{\prime }$, proton orbits j become more bound to different extents. In other words, the ordering of the single-particle proton orbits in a given shell may change to a certain extent while they become more deeply bound as a whole.

These are properties that one can expect from different central forces, while the actual situation should be somewhere in between. We point out a common feature that if the nuclear force, $\hat{v}$, is an attractive central force, the monopole effect depicted in equation (4) is always attractive for all orbits j.

We start by considering a chain of isotopes. If more neutrons are added beyond a closed shell, the nucleus moves to the right on the Segrè chart. We now take a filling scheme where neutrons occupy the lowest possible single-particle orbits. As more neutrons (or protons) occupy the orbit ${j}^{\prime }$ at the Fermi level, its occupation number ${n}_{{j}^{\prime }}$ increases (see equation (4)). Thus, type I shell evolution can occur. In subsection 2.2, this case was discussed with an extremely simple force–an infinite-range central force. We then found that the shell structure does not change, but the whole shell becomes more bound. We now study the shell evolution due to another component of nuclear force.

The tensor force has been known for a long time, and its effects were studied from many angles. Those studies include an extraction of the tensor-force component in the empirical nucleon–nucleon interaction by Schiffer and True [15], a derivation of microscopic effective NN interaction (i.e., the so-called 'G-matrix interaction') including second-order effects of the tensor force by Kuo and Brown [16], calculations of magnetic moments also including second-order tensor-force contributions by Arima and his collaborators [17] and by Towner [18], and so-called TOSM calculations of halo nuclei [19].

The robust, systematic and first-order effects of the tensor force on the shell structure have, however, been discussed since 2005 [7]. We present the basic properties of the monopole interaction of the tensor force, by using an illustrative example. Figure 1(a) shows proton orbits and a neutron orbit. The proton orbits are spin-orbit partners

$$\begin{eqnarray}&&{j}_{\gt }=l+1/2,\;\;\;\;\;\;{j}_{\lt }=l-1/2\end{eqnarray} \tag{ 5 }$$

where l denotes the orbital angular momentum, and 1/2 represents the spin. As shown in [7] with an intuitive picture, the coupling between ${j}_{\lt }$ and ${j}_{\gt }^{\prime }$ orbits is attractive for the tensor force. On the other hand, the coupling between ${j}_{\gt }$ and ${j}_{\gt }^{\prime }$ is repulsive as well as the coupling between ${j}_{\lt }$ and ${j}_{\lt }^{\prime }$. (For a  more elaborate intuitive explanation, see [20].) In figure 1(a), a neutron ${j}_{\gt }^{\prime }$ orbit is shown on top of the core. Figure 1(b) illustrates how the tensor force works if two neutrons occupy this ${j}_{\gt }^{\prime }$ orbit. Due to the repulsive monopole interaction (red wavy line), the single-particle energy of the proton ${j}_{\gt }$ orbit is raised. On the other hand, owing to the attractive monopole interaction (blue wavy line), the single-particle energy of the proton ${j}_{\lt }$ orbit is lowered. These changes combined produce the reduction of spin-orbit splitting.

Zoom In Zoom Out Reset image size

Since the monopole effect is linear, four neutrons in the ${j}_{\gt }^{\prime }$ orbit as shown in figure 1(c) double the effect exhibited in figure 1(b). Thus, the proton spin-orbit splitting becomes smaller and smaller, as more neutrons occupy the ${j}_{\gt }^{\prime }$ orbit.

This change of the shell structure is very different from the changes discussed in subsection 2.2. In the former, the sign of the effect changes for different combinations of the orbits, whereas the sign is the same in the latter. Thus, the tensor force produces a very unique monopole interaction, which may show various shell evolutions with significant changes such as the disappearance of known magic numbers, the appearance of new magic numbers, the crossing of two orbits, etc, which provide intriguing research programs [20, 22, 23].

We note that the actual values of monopole matrix element depend on the radial wave functions of the orbits j and ${j}^{\prime }$ in equation (3) also in the case of the tensor force. Large magnitudes are expected between the same orbits ($j={j}^{\prime }$) or between spin-orbit partners, as well as for a pair of orbits both having no radial node and high orbital angular momenta close to each other [7].

The tensor-force component has been included in various types of nuclear models, including those based on the spin-tensor decomposition [24, 25], those based on the mean-field models [26, 27, 28, 29, 30, 31, 32, 33], while the tensor force was not activated before these works [34].

One typical case of the application of the tensor-force-driven shell evolution is shown in figure 2, taken from [21]. Here, from ⁹⁰Zr to ¹⁰⁰Sn, the number of protons in the $1{g}_{9/2}$ orbit increases from 0 to 10. The neutron orbits on top of the N = 50 core change their single-particle energies, as shown in figure 2. There are two sets of calculated results: one (solid lines) is obtained with the central and tensor forces, while the other (dashed lines) is only with the central force. Note that the tensor force used in figure 2 was obtained from the π-meson + ρ-meson exchange potential [35, 21], and that the central force here is of a Gaussian type, which can reproduce basic properties of the central part of microscopic effective NN interactions based on G-matrix calculation [36] (see [21] for details). We mention some important features: (i) the $1{g}_{7/2}$ and $1{h}_{11/2}$ orbits come down together if the central force only is taken. In contrast, these two orbits exhibit an increasing energy splitting approaching Z = 50 if the tensor force is included. The lowering of the $1{g}_{7/2}$ orbit has been known experimentally [37, 38], which is consistent with a significant monopole effect of the tensor force. The stronger coupling between the proton $1{g}_{9/2}$ orbit and the neutron $1{g}_{7/2}$ orbit was discussed as an enhanced effect of the proton-neutron central (${}^{3}{S}_{1}$ ) force by Federman and Pittel [39], which is consistent with the central-force contribution in figure 2.

Zoom In Zoom Out Reset image size

We mention, from a more general viewpoint, that the strong attraction between proton–neutron spin–orbit partners was noticed in relation to the onset of deformation in Zr isotopes [40]. The monopole interaction between proton $2{p}_{3/\mathrm{2,1}/2}$ orbit and neutron $2{d}_{5/2}$ orbit was discussed for the description of Zr-Sr isotopes in [41] by using the empirical interaction introduced in [15]. Such monopole effects presented in earlier works without mentioning the tensor force, e.g., [39, 40, 41, 42, 43, 44], can be understood now quite consistently as consequences of the shell evolution mainly due to the tensor force.

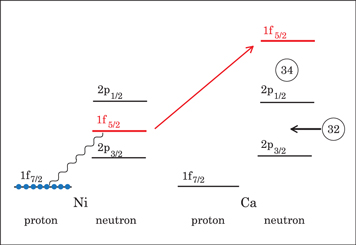

A recent typical example of the shell evolution is the appearance of a new magic number N = 34. Figure 3 shows the shell evolution for the neutron orbits in the pf shell from Ni to Ca. In Ni, there are eight protons on top of the Z = 20 core, and they are assumed to be in the $1{f}_{7/2}$ orbit. Due to the strong attractive interaction between the $1{f}_{7/2}$ proton and $1{f}_{5/2}$ neutron orbits where the tensor and central forces contribute additively, the addition of protons lowers the energy of the neutron $1{f}_{5/2}$ orbit. This is the case for Ni isotopes, where the $1{f}_{5/2}$ orbit is located between the $2{p}_{3/2}$ and $2{p}_{1/2}$ orbits. In the Ca isotopes, the proton $1{f}_{7/2}$ orbit is unoccupied, so there is a vanishing monopole shift for the $1{f}_{5/2}$ orbit. This moves the neutron $1{f}_{5/2}$ orbit upwards even above the $2{p}_{1/2}$ orbit, leaving a gap at N = 32 and creating another gap at N = 34. Thus, N = 34 becomes a magic number for the Ca isotopes. In this argument, the ${j}_{\gt }$ - ${j}_{\lt }$ proton–neutron coupling within a major shell is important, and is the mechanism for the shell evolution between Ca and Ni. (This was basically the prediction in [13] in 2001, as the corresponding text is quoted as 'we can predict other magic numbers, for instance, N = 34 associated with the $0{f}_{7/2}-0{f}_{5/2}$ interaction'.) The experimental investigation of the N = 34 magic number in the Ca isotopes, however, had been infeasible for a long time, casting doubt over this magic number [45]. In 2013, finally, the 2⁺ excitation energy was measured in the Radioactive Isotope Beam Factory (RIBF) [46] consistently with an N = 34 gap. The N = 32 gap in the Ca isotopes was investigated experimentally in ISOLDE in 1985 in terms of the 2⁺ excitation energy [47]. The magic structures of Ca isotopes attracted much attention in recent years [48]–[64].

Zoom In Zoom Out Reset image size

We here comment that the tensor force in the free space like the one obtained from one-π-meson + one-ρ-meson exchange potential does not change much after the renormalization procedures for the short-range repulsion and the in-medium corrections, as referred to as renormalization persistency [21, 65]. The tensor-force component of the effective NN interaction can be obtained by its spin-tensor decomposition [66]–[71] also. The tensor forces obtained by different approaches are expected to be rather similar at least at the level of the monopole interaction for the valence shell because of the renormalization persistency. Thus, we can discuss rather well general features of the monopole effects of the tensor force.

Figure 1(d) depicts the basic idea of type II shell evolution, where particle–hole excitations occur for neutrons from the orbit ${j}_{\lt }^{\prime \prime}$ to the orbit ${j}_{\gt }^{\prime }$. Because of the rule of the tensor-force monopole interaction, the occupancy of the particle orbit ${j}_{\gt }^{\prime }$ reduces the proton ${j}_{\gt }$ - ${j}_{\lt }$ splitting. This is identical to what takes place in figure 1(b). In addition, the creation of holes in the neutron ${j}_{\lt }^{\prime \prime}$ orbit brings about another effect. It decreases the effect of the tensor-force monopole interaction from the fully occupied ${j}_{\lt }^{\prime \prime}$ orbit. In other words, equation (4) is changed by the ordinary particle-hole transformation to

$$\begin{eqnarray}&&{\rm{\Delta }}{\epsilon }_{j}=-{v}_{m}(j,{j}^{\prime })\;{n}_{{j}^{\prime }}^{{\rm{hole}}},\end{eqnarray} \tag{ 6 }$$

where ${v}_{m}(j,{j}^{\prime })$ is the same as in equation (4) and ${n}_{{j}^{\prime }}^{{\rm{hole}}}$ stands for the number of holes in the orbit ${j}^{\prime }$. Note that ${\rm{\Delta }}{\epsilon }_{j}$ implies the difference from the value for the configuration with the fully occupied (no-hole) ${j}^{\prime }$ orbit.

In the case of figure 1(d), as ${v}_{m}({j}_{\lt },j^{\prime} {^{\prime} }_{\lt })\gt 0$ due to the general rule, the neutron hole in the orbit $j^{\prime} {^{\prime} }_{\lt }$ lowers the proton ${j}_{\lt }$ orbit. By the same mechanism working oppositely, the proton ${j}_{\gt }$ orbit is raised by the neutron particle in the orbit ${j}_{\gt }^{\prime }$ and neutron holes in the orbit ${j}_{\lt }^{\prime \prime}$. Combining all these effects, the proton spin–orbit splitting between ${j}_{\gt }$ - ${j}_{\lt }$ is reduced by even more than in figure 1(b). We emphasize that similarly to the situation shown in figure 1(c), the change is doubled due to the linearity of the monopole effect, if there are 4p−4 h excitation as shown in figure 1(e). This reduction, of course, depends on the orbits involved. If favorable combinations are involved, the final effect can be quite significant. We now discuss such examples.

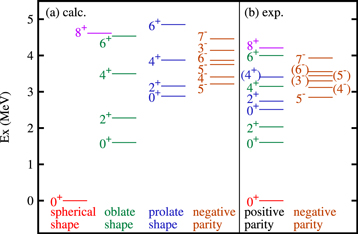

Figure 4(a) shows levels of ⁶⁸Ni [72]. These levels are calculated by using the Monte Carlo shell model (MCSM) [74, 75] by using the K computer facility [72]. The model space consists of the full pf shell + $1{g}_{9/2}$ + $2{d}_{5/2}$ without any truncation. The variance extrapolation ensures the accuracy of the result [76]. The shell-model Hamiltonian was modified A3DA, which is a combination of G-matrix effective interaction, phenomenologically tuned bare single-particle energies and two-body matrix elements [75, 72]. The level scheme and E2 properties of other Ni isotopes are presented in [72] with a salient systematic agreement with experiment [73, 87, 88], suggesting the validity of the shell-model Hamiltonian. While there have been many studies on ⁶⁸Ni [77]–[89], we shall focus on messages contained in the calculated results of [72].

Calculated positive-parity levels of ⁶⁸Ni are classified according to their shapes: spherical, oblate or prolate. The shape assignment is made based on the intrinsic quadrupole moments of primary MCSM basis vectors as explained below and also in [72]. The separation in specific bands is consistent with the enhanced E2 transitions. The present calculation exhibits rather good agreement with the data shown in figure 4(b) [73, 87, 88]. The appearance of three different shapes within a narrow energy range points towards the presence of shape coexistence.

Zoom In Zoom Out Reset image size

Figure 5 shows the three-dimensional total energy surface calculated from the same shell-model Hamiltonian by the constrained Hartree–Fock method [90]. The constraint is by the values of the intrinsic quadrupole moments, Q₀ ($\propto \langle 2{z}^{2}-{x}^{2}-{y}^{2}\rangle$) and Q₂ ($\propto \langle {x}^{2}-{y}^{2}\rangle$), where the x, y and z coordinates are taken in the intrinsic frame [90]. The energy here means that of constrained Hartree–Fock ground state for a given set of Q₀ and Q₂ values. Figure 5 gives a global view of the structure of ⁶⁸Ni. The absolute minimum is obtained at the spherical shape. Moving to the oblate direction along the axially-symmetric shape, there appears a shoulder. On the other hand, in the direction to the prolate shape, one encounters a huge barrier and a pronounced local minimum beyond it.

Zoom In Zoom Out Reset image size

The shell-model eigenstate in the MCSM is represented by a superposition of ${J}^{\pi }$ projected MCSM basis vectors. These MCSM basis vectors themselves are deformed Slater determinants, and are generated through Monte Carlo and variational processes [75]. As they can be characterized by the intrinsic quadrupole moments, Q₀ and Q₂, they can be plotted on the total energy surface according to their Q₀ and Q₂ values. This analysis (called T-plot later) in [72] indicates that the ${0}_{1}^{+}$, ${0}_{2}^{+}$ and ${0}_{3}^{+}$ states have their major basis vectors located around the spherical absolute minimum, the oblate shoulder and the prolate local minimum, respectively. Note that the plots of these basis vectors are scattered as a consequence of various quantum fluctuations (see [72]). Thus, we can relate the ${0}_{1}^{+}$, ${0}_{2}^{+}$ and ${0}_{3}^{+}$ shell-model eigenstates to specific regions on the total energy surface, such as the spherical, oblate and prolate ones.

We now concentrate on the shape change along the axially symmetric deformation axis. Figure 6 is a simpler version of figure 5, presenting the same energy for the states of the axial symmetry (${Q}_{2}=0$), as a function of Q₀. The ${0}_{1}^{+}$ ground state corresponds to the spherical absolute minimum. In this situation, the Z = 28 and N = 40 closed shell is kept well. Figure 7 shows the occupation number of each orbit for the three 0⁺ states. The breaking of the closed shell in the ${0}_{1}^{+}$ state is only minimal, with about one neutron excited from the pf shell to the $1{g}_{9/2}$ orbit in average. The ${0}_{2}^{+}$ state contains more excitations from the closed shell, with about one proton from the $1{f}_{7/2}$ to the upper pf shell and more than two neutrons to the $1{g}_{9/2}$ orbit. Thus, the relative excitation with respect to the ${0}_{1}^{+}$ state is about two: about one proton and about one neutron. This is a usual excitation pattern, and the ${0}_{2}^{+}$ state shows a modest oblate deformation. For the ${0}_{3}^{+}$ state, the situation is very different: nearly three protons are excited from the $1{f}_{7/2}$ orbit and more than four neutrons are excited across N = 40 gap. Here, the relative excitation from the ${0}_{1}^{+}$ state is about six nucleons: three protons and three neutrons. It is clear that such particle–hole excitations produce a large deformation in the ${0}_{3}^{+}$ state. What mechanism can make it possible?

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

The answer is in type II shell evolution within the nucleus ⁶⁸Ni. In the ${0}_{3}^{+}$ state, there are about four neutron particles in the $1{g}_{9/2}$ orbit, leaving four neutron holes in the pf shell: these can be approximately partitioned into two in the $1{f}_{5/2}$ and another two in the $2{p}_{1/2}$. Both the $1{f}_{5/2}$ and $2{p}_{1/2}$ orbits are ${j}_{\lt }$ orbits. According to the situation discussed in figure 1(d), the monopole shift implies a reduction in the proton spin–orbit splitting. Figure 8 shows the single-particle energy of each orbit for the ${0}_{1}^{+}$, ${0}_{2}^{+}$ and ${0}_{3}^{+}$ states. The effects discussed in calculating the monopole shifts with equations (4) and (6) are included using the actual values of ${n}_{{j}^{\prime }}$ and ${n}_{{j}^{\prime }}^{{\rm{hole}}}$. The most remarkable change in the proton and neutron single-particle energies between the ${0}_{1}^{+}$ and ${0}_{3}^{+}$ states is the splitting between proton $1{f}_{7/2}$ and $1{f}_{5/2}$. This is about 9 MeV for the ${0}_{1}^{+}$ state, which is reduced to about 6 MeV for the 0⁺₃ state. This change is what one can expect from type II shell evolution. A large spin-orbit splitting generally prevents the nucleus from deformation, and tends to make it more spherical. The type II shell evolution hinders this function. Thus, large prolate deformation becomes possible.

Zoom In Zoom Out Reset image size

In fact, this is a self-consistency mechanism. Once particle-hole excitations favoring type II shell evolution occur, protons lose resistance against the tendency for deformation to occur. This makes the proton sector more deformed, resulting in a stronger deformation also in the neutron sector. A stronger deformation enhances neutron particle–hole excitations, which then favors type II shell evolution. Thus, the self-consistent solution is achieved with an unusual amount of deformation and particle–hole excitations. This shows up for the ${0}_{3}^{+}$ state. This is a nonlinear process, too. The mechanism introduced here is consistent with figure 6: once a large deformation is imposed as the constraint, neutron particle–hole excitations occur more easily, making the proton sector less resistant against deformation through the proton–neutron interaction.

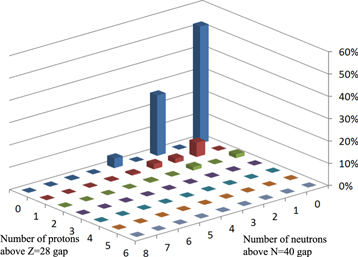

The probabilities of various configurations reflect such an unusual feature. Figures 9–11 show the probability of each particle–hole configuration, for the three 0⁺ states. Figure 9 depicts the probabilities of the ${0}_{1}^{+}$ state with concentrations on the 0p−0 h configuration as well as a modest contribution from neutron 2p−2 h with proton 0p−0 h configurations. Figure 10 presents a different pattern with the highest peak of proton 0p−0 h neutron 2p−2 h configuration. Finally, in figure 11, major peaks are shifted to multi-particle multi-hole configurations. It is noted that certain intermediate configurations are absent, because a larger amount of particle–hole excitations brings about more binding energy as a consequence of the nonlinear nature of type II shell evolution.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

The crucial role played by type II shell evolution can be visualized by introducing another Hamiltonian where it is suppressed by tuning particular two-body matrix elements. In the present case, we reset ${v}_{m}(\pi 1{f}_{7/2},\nu 1{g}_{9/2})$ and ${v}_{m}(\pi 1{f}_{5/2},\nu 1{g}_{9/2})$ in equation (3) so that both of them are equal to the average of their original values. We reset ${v}_{m}(\pi 1{f}_{7/2},\nu 1{f}_{5/2})={v}_{m}(\pi 1{f}_{5/2},\nu 1{f}_{5/2})$ similarly. This modification removes mainly the tensor-force contributions from the relevant monopole interactions, while the contributions of the central force remain nearly unchanged. The resultant total energy surface is included in figure 6 (blue dashed line), exhibiting significant differences from the one obtained by the original Hamiltonian. The difference is negligible near the spherical shape, because neutron particle–hole excitations occur only modestly. However, once the deformation becomes stronger, type II shell evolution sets in and the energy is lowered, creating a pronounced local minimum. Note that through this mechanism, both the spherical and prolate minima remain stable because the barrier is kept high near the spherical shape.
